Current Switch Applications
|
|
|
CURRENT STATUS SWITCHES (Digital Output)
|
|
Applications
|
Calibration Method
|
|
Split-Core
|
Amp
Range
|
Series
|
|
|
Mini-Split Core
|
Amp
Range
|
Series
|
|
|
Belt-loss
(proof of flow)
|
AutoSet
PreSet (Manual)
|
2.5-135A
1-100A
|
C-2330
C-2320
|
0.75-50A
|
C-1220
|
|
Belt-loss and Control
(command relay)
|
AutoSet
PreSet (Manual)
|
2.5-135A
1-100A
|
C-2330-CR
C-2320-CR
|
|
|
|
|
Load Status (on/off)
|
Fixed (none)
|
0.15-200A
|
C-2300
|
0.1-200A
|
C-1200
|
|
|
Load Status and Control
|
Fixed (none)
|
0.15-200A
|
C-2300-CR
|
|
|
|
|
|
|
|
ANALOG CURRENT SENSORS
|
|
Applications
|
Output Type
|
|
Split-Core
|
Amp
Range
|
Series
|
|
|
Mini-Split Core
|
Amp
Range
|
Series
|
|
|
|
Load Trending
|
0- VDC
0-10 VDC
4-2 mA
|
30,60,
120A
Selectable
|
C-2343
C-2344
C-2345
|
20A
|
C-1203
C-1204
C-1205
|
|
Load Trending
and Control
|
0-5 VDC
0-10 VDC
4-20 mA
|
30,60,
12A
Selectable
|
C-2343-CR
C-2344-CR
C-2345-CR
|
|
|
|
|
|
|

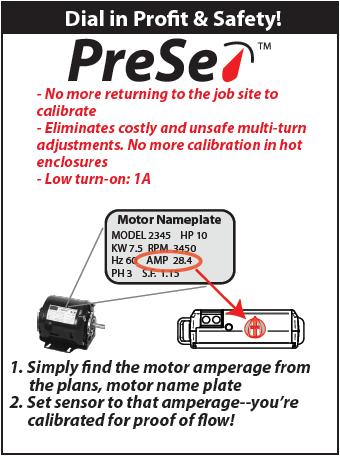

Adjustable type (e.g. Autocal or PreSet models)

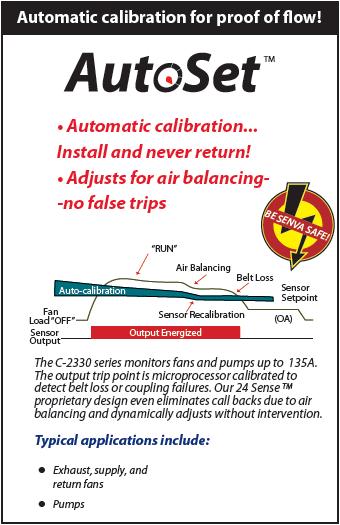

Proof of flow for fans/pumps—superior to faulty mechanical differential pressure switches.
Detect belt loss, coupling failure, and electrical faults on supply and return fans and pumps.
|
|
|
Fixed threshold (go/no)

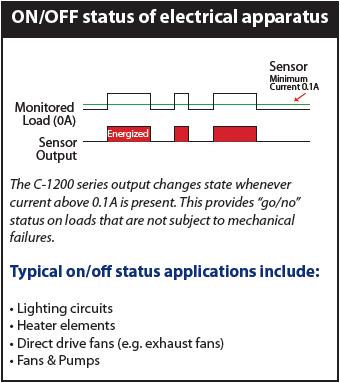

Load status (on/off ) in applications such as unit vent heaters
Direct drive fans/pumps
|
|
|
Analog Sensors
Load trending
Coarse energy allocation
|
|
|
|
|
|
|
|
|
|
