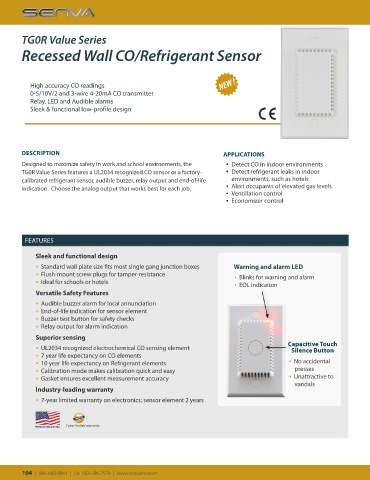

Page 104 - 2020 Catalog

TG0R Value Series
Recessed Wall CO/Refrigerant Sensor

High accuracy CO readings NEW !
0-5/10V/2 and 3-wire 4-20mA CO transmitter
Relay, LED and Audible alarms
Sleek & functional low-profile design

DESCRIPTION APPLICATIONS
Designed to maximize safety in work and school environments, the ▪ Detect CO in indoor environments
TG0R Value Series features a UL2034 recognized CO sensor or a factory- ▪ Detect refrigerant leaks in indoor
calibrated refrigerant sensor, audible buzzer, relay output and end-of-life environments, such as hotels
indication. Choose the analog output that works best for each job. ▪ Alert occupants of elevated gas levels
▪ Ventillation control
▪ Economizer control

FEATURES

Sleek and functional design
▪ Standard wall plate size fits most single gang junction boxes Warning and alarm LED

▪ Flush-mount screw plugs for tamper-resistance ▪ Blinks for warning and alarm
▪ Ideal for schools or hotels ▪ EOL indicaiton
Versatile Safety Features
▪ Audible buzzer alarm for local annunciation
▪ End-of-life indication for sensor element
▪ Buzzer test button for safety checks
▪ Relay output for alarm indication

Superior sensing
▪ UL2034 recognized electrochemical CO sensing element
▪ 7 year life expectancy on CO elements
▪ 10 year life expectancy on Refrigerant elements ▪ No accidental
▪ Calibration mode makes calibration quick and easy presses
▪ Gasket ensures excellent measurement accuracy ▪ Unattractive to
vandals
Industry-leading warranty
▪ 7-year limited warranty on electronics; sensor element 2 years

7 year limited warranty
PROUDLY MADE IN USA

104 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
