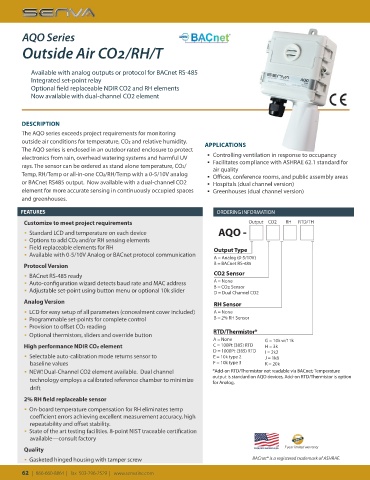

Page 62 - 2020 Catalog

AQO Series

Outside Air CO2/RH/T

Available with analog outputs or protocol for BACnet RS-485
Integrated set-point relay
Optional field replaceable NDIR CO2 and RH elements
Now available with dual-channel CO2 element

DESCRIPTION
The AQO series exceeds project requirements for monitoring
outside air conditions for temperature, CO2 and relative humidity. APPLICATIONS
The AQO series is enclosed in an outdoor rated enclosure to protect
electronics from rain, overhead watering systems and harmful UV ▪ Controlling ventilation in response to occupancy
rays. The sensor can be ordered as stand alone temperature, CO2/ ▪ Facilitates compliance with ASHRAE 62.1 standard for
air quality
Temp, RH/Temp or all-in-one CO2/RH/Temp with a 0-5/10V analog ▪ Offices, conference rooms, and public assembly areas
or BACnet RS485 output. Now available with a dual-channel CO2 ▪ Hospitals (dual channel version)
element for more accurate sensing in continuously occupied spaces ▪ Greenhouses (dual channel version)
and greenhouses.

FEATURES ORDERING INFORMATION
Customize to meet project requirements Output CO2 RH RTD/TH
▪ Standard LCD and temperature on each device AQO -

▪ Options to add CO2 and/or RH sensing elements
▪ Field replaceable elements for RH Output Type
▪ Available with 0-5/10V Analog or BACnet protocol communication A = Analog (0-5/10V)
Protocol Version B = BACnet RS-485
▪ BACnet RS-485 ready CO2 Sensor
▪ Auto-configuration wizard detects baud rate and MAC address A = None
B = CO2 Sensor
▪ Adjustable set-point using button menu or optional 10k slider D = Dual Channel CO2
Analog Version RH Sensor

▪ LCD for easy setup of all parameters (concealment cover included) A = None
▪ Programmable set-points for complete control B = 2% RH Sensor
▪ Provision to offset CO2 reading
▪ Optional thermistors, sliders and override button RTD/Thermistor*
A = None G = 10k w/11k
High performance NDIR CO2 element C = 100Pt (385) RTD H = 3k
D = 1000Pt (385) RTD I = 2k2
▪ Selectable auto-calibration mode returns sensor to E = 10k type 2 J = 1k8
baseline values F = 10k type 3 K = 20k
▪ NEW! Dual-Channel CO2 element available. Dual channel *Add-on RTD/Thermistor not readable via BACnet; Temperature
technology employs a calibrated reference chamber to minimize output is standard on AQO devices, Add-on RTD/Thermistor is option
for Analog.
drift
2% RH field replaceable sensor
▪ On-board temperature compensation for RH eliminates temp
coefficient errors achieving excellent measurement accuracy, high
repeatability and offset stability.
▪ State of the art testing facilities. 8-point NIST traceable certification
available—consult factory
Quality PROUDLY MADE IN USA 7 year limited warranty
▪ Gasketed hinged housing with tamper screw BACnet® is a registered trademark of ASHRAE.
