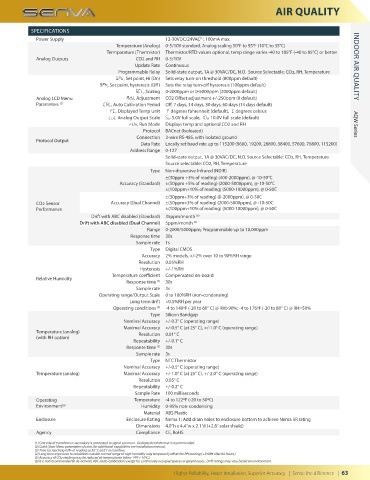

Page 63 - 2020 Catalog

AIR QUALITY

SPECIFICATIONS
Power Supply 12-30VDC/24VAC , 100mA max.
(1)
Temperature (Analog) 0-5/10V standard, Analog scaling 50°F to 95°F (10°C to 35°C)
Termparature (Thermistor) Thermistor/RTD values optional, temp range varies -40 to 185°F (-40 to 85°C) or better
Analog Outputs CO2 and RH 0-5/10V
Update Rate Continuous INDOOR AIR QUALITY
Programmable Relay Solid-state output, 1A @ 30VAC/DC, N.O. Source Selectable: CO2, RH, Temperature
Spt, Set point, Hi (On) Sets relay turn-on threshold (800ppm default)
SPh, Set point, hysteresis (Off) Sets the relay turn-off hysteresis (100ppm default)
SCL, Scaling 0-2000ppm or 0-5000ppm (2000ppm default)
Analog LCD Menu AdJ, Adjustment CO2 Offset adjustment +/-250ppm (0 default)
Parameters (2) CAL, Auto Calibration Period Off, 7 days, 14 days, 30 days, 60 days (14 days default)
C, Displayed Temp Unit  degrees fahrenheit (default), C degrees celsius
LvL Analog Output Scale 5v 5.0V full scale, 10v 10.0V full scale (default)
RUN, Run Mode Displays temp and optional CO2 and RH AQW Series
Protocol BACnet (Isoloated)
Connection 3-wire RS-485, with isolated ground
Protocol Output
Data Rate Locally set baud rate up to 115200 (9600, 19200, 28800, 38400, 57600, 76800, 115200)
Address Range 0-127
Solid-state output, 1A @ 30VAC/DC, N.O. Source Selectable: CO2, RH, Temperature
Source selectable: CO2, RH, Temperature
Type Non-dispersive Infrared (NDIR)
±(30ppm +3% of reading) (400-2000ppm), @-10-50°C
Accuracy (Standard) ±(50ppm +5% of reading) (2000-5000ppm), @-10-50°C
±(100ppm+10% of reading) (5000-10000ppm), @ 0-50C
±(30ppm+3% of reading) (0-2000ppm), @ 0-50C
CO2 Sensor Accuracy (Dual Channel) ±(50ppm+3% of reading) (2000-5000ppm), @ -10-50C
Performance ±(100ppm+10% of reading) (5000-10000ppm), @ 0-50C
Drift with ABC disabled (Standard) 35ppm/month (6)
Drift with ABC disabled (Dual Channel) 5ppm/month (6)
Range 0-2000/5000ppm; Programmable up to 10,000ppm
Response time 30s
Sample rate 1s
Type Digital CMOS
Accuracy 2% models, +/-2% over 10 to 90%RH range
Resolution 0.05%RH
Hysteresis +/-1%RH
Temperature coefficient Compensated on-board
Relative Humidity
Response time (3) 30s
Sample rate 3s
Operating range/Output Scale 0 to 100%RH (non-condensing)
Long term drift <0.5%RH per year
Operating conditions (4) -4 to 140oF (-20 to 60° C) @ RH>90%; -4 to 176oF (-20 to 80° C) @ RH=50%
Type Silicon Bandgap
Nominal Accuracy +/-0.3° C (operating range)
Maximal Accuracy +/-0.5° C (at 25° C), +/-1.0° C (operating range)
Temperature (analog) Resolution 0.01° C
(with RH option)
Repeatability +/-0.1° C
Response time (3) 30s
Sample rate 3s
Type NTC Thermistor
Nominal Accuracy +/-0.5° C (operating range)
Temperature (analog) Maximal Accuracy +/-1.0° C (at 25° C), +/-2.0° C (operating range)
Resolution 0.05° C
Repeatability +/-0.2° C
Sample Rate 100 milliseconds
Operating Temperature -4 to 122oF (-20 to 50ºC)
Environment(5) Humidity 0-95% non-condensing
Material ABS Plastic
Enclosure Enclosure Rating Nema 1; Add drain holes to enclosure bottom to achieve Nema 3R rating
Dimensions 4.0”h x 4.4”w x 2.1”d (+2.8" solar shield)
Agency Compliance CE, RoHS
(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended.
(2) Quick Start Menu parameters shown, for additional capabilities see installation manual.
(3) Time for reaching 63% of reading at 25° C and 1 m/s airflow.
(4) Long term exposures to conditions outside normal range at high humidity may temporarily offset the RH reading (+3%RH after 60 hours.)
(5) Accuracy of CO2 reading may be reduced at temperatures below 14ºF (-10oC).
(6) It is not recommended to de-activate ABC (auto-calibration) except for continously occupied spaces or greenhouses. Drift ratings may vary based on environment.
Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 63
