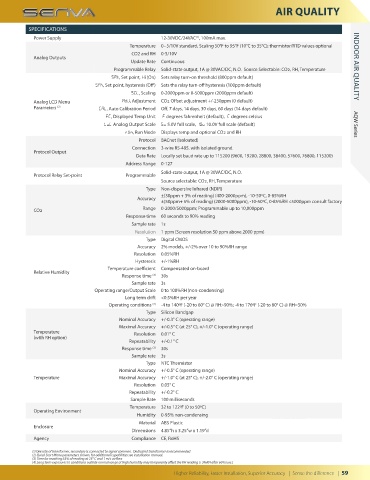

Page 59 - 2020 Catalog

AIR QUALITY

SPECIFICATIONS
Power Supply 12-30VDC/24VAC , 100mA max.
(1)
Temperature 0--5/10V standard, Scaling 50°F to 95°F (10°C to 35°C); thermistor/RTD values optional
CO2 and RH 0-5/10V
Analog Outputs
Update Rate Continuous
Programmable Relay Solid-state output, 1A @ 30VAC/DC, N.O. Source Selectable: CO2, RH, Temperature INDOOR AIR QUALITY
Spt, Set point, Hi (On) Sets relay turn-on threshold (800ppm default)
SPh, Set point, hysteresis (Off) Sets the relay turn-off hysteresis (100ppm default)
SCL, Scaling 0-2000ppm or 0-5000ppm (2000ppm default)
Analog LCD Menu AdJ, Adjustment CO2 Offset adjustment +/-250ppm (0 default)
Parameters (2) CAL, Auto Calibration Period Off, 7 days, 14 days, 30 days, 60 days (14 days default)
C, Displayed Temp Unit  degrees fahrenheit (default), C degrees celsius
LvL Analog Output Scale 5v 5.0V full scale, 10v 10.0V full scale (default) AQW Series
RUN, Run Mode Displays temp and optional CO2 and RH
Protocol BACnet (Isoloated)
Connection 3-wire RS-485, with isolated ground
Protocol Output
Data Rate Locally set baud rate up to 115200 (9600, 19200, 28800, 38400, 57600, 76800, 115200)
Address Range 0-127
Solid-state output, 1A @ 30VAC/DC, N.O.
Protocol Relay Set-point Programmable
Source selectable: CO2, RH, Temperature
Type Non-dispersive Infrared (NDIR)
±(30ppm + 3% of reading) (400-2000ppm), -10-50ºC, 0-85%RH
Accuracy
±(50ppm+ 5% of reading) (2000-5000ppm), -10-50ºC, 0-85%RH <5000ppm consult factory
CO2 Range 0-2000/5000ppm; Programmable up to 10,000ppm
Response time 60 seconds to 90% reading
Sample rate 1s
Resolution 1 ppm (Screen resolution 50 ppm above 2000 ppm)
Type Digital CMOS
Accuracy 2% models, +/-2% over 10 to 90%RH range
Resolution 0.05%RH
Hysteresis +/-1%RH
Temperature coefficient Compensated on-board
Relative Humidity
Response time (3) 30s
Sample rate 3s
Operating range/Output Scale 0 to 100%RH (non-condensing)
Long term drift <0.5%RH per year
Operating conditions (4) -4 to 140oF (-20 to 60° C) @ RH>90%; -4 to 176oF (-20 to 80° C) @ RH=50%
Type Silicon Bandgap
Nominal Accuracy +/-0.3° C (operating range)
Maximal Accuracy +/-0.5° C (at 25° C), +/-1.0° C (operating range)
Temperature Resolution 0.01° C
(with RH option)
Repeatability +/-0.1° C
Response time (3) 30s
Sample rate 3s
Type NTC Thermistor
Nominal Accuracy +/-0.5° C (operating range)
Temperature Maximal Accuracy +/-1.0° C (at 25° C), +/-2.0° C (operating range)
Resolution 0.05° C
Repeatability +/-0.2° C
Sample Rate 100 milliseconds
Temperature 32 to 122oF (0 to 50oC)
Operating Environment
Humidity 0-95% non-condensing
PROUDLY MADE IN USA 7 year limited warranty
Material ABS Plastic
Enclosure
Dimensions 4.85”h x 3.25”w x 1.19”d
Agency Compliance CE, RoHS

(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended.
(2) Quick Start Menu parameters shown, for additional capabilities see installation manual.
(3) Time for reaching 63% of reading at 25° C and 1 m/s airflow
(4) Long term exposures to conditions outside normal range at high humidity may temporarily offset the RH reading (+3%RH after 60 hours.)
Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 59
