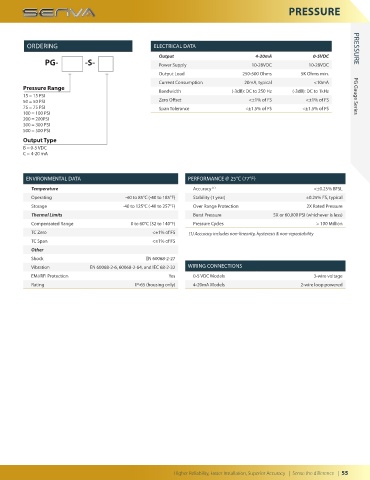

Page 55 - 2020 Catalog

PRESSURE

ORDERING ELECTRICAL DATA PRESSURE
Output 4-20mA 0-5VDC
PG- -S- Power Supply 10-28VDC 10-28VDC

Output Load 250-500 Ohms 5K Ohms min.
Current Consumption 20mA, typical <10mA
Pressure Range Bandwidth (-3dB): DC to 250 Hz (-3dB): DC to 1kHz
15 = 15 PSI PG Gauge Series
50 = 50 PSI Zero Offset <±1% of FS <±1% of FS
75 = 75 PSI Span Tolerance <±1.5% of FS <±1.5% of FS
100 = 100 PSI
200 = 200PSI
300 = 300 PSI
500 = 500 PSI
Output Type
B = 0-5 VDC
C = 4-20 mA

ENVIRONMENTAL DATA PERFORMANCE @ 25°C (77°F)
Temperature Accuracy (1) <±0.25% BFSL
Operating -40 to 85°C (-40 to 185°F) Stability (1 year) ±0.25% FS, typical
Storage -40 to 125°C (-40 to 257°F) Over Range Protection 2X Rated Pressure
Thermal Limits Burst Pressure 5X or 60,000 PSI (whichever is less)
Compensated Range 0 to 60°C (32 to 140°F) Pressure Cycles > 100 Million
TC Zero <±1% of FS (1) Accuracy includes non-linearity, hysteresis & non-repeatability
TC Span <±1% of FS
Other
Shock EN 60068-2-27
Vibration EN 60068-2-6, 60068-2-64, and IEC 68-2-32 WIRING CONNECTIONS
EMI/RFI Protection Yes 0-5 VDC Models 3-wire voltage
Rating IP-65 (housing only) 4-20mA Models 2-wire loop powered

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 55
