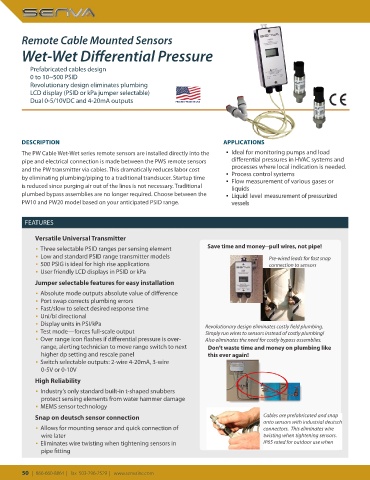

Page 50 - 2020 Catalog

Remote Cable Mounted Sensors

Wet-Wet Differential Pressure

Prefabricated cables design
0 to 10~500 PSID
Revolutionary design eliminates plumbing
LCD display (PSID or kPa jumper selectable)
Dual 0-5/10VDC and 4-20mA outputs PROUDLY MADE IN USA

DESCRIPTION APPLICATIONS

The PW Cable Wet-Wet series remote sensors are installed directly into the ▪ Ideal for monitoring pumps and load
pipe and electrical connection is made between the PWS remote sensors differential pressures in HVAC systems and
and the PW transmitter via cables. This dramatically reduces labor cost processes where local indication is needed.
by eliminating plumbing/piping to a traditional trandsucer. Startup time ▪ Process control systems
▪ Flow measurement of various gases or
is reduced since purging air out of the lines is not necessary. Traditional liquids
plumbed bypass assemblies are no longer required. Choose between the ▪ Liquid level measurement of pressurized
PW10 and PW20 model based on your anticipated PSID range. vessels

FEATURES
Versatile Universal Transmitter
▪ Three selectable PSID ranges per sensing element Save time and money--pull wires, not pipe!
▪ Low and standard PSID range transmitter models Pre-wired leads for fast snap
▪ 500 PSIG is ideal for high rise applications connection to sensors
▪ User friendly LCD displays in PSID or kPa
Jumper selectable features for easy installation

▪ Absolute mode outputs absolute value of difference
▪ Port swap corrects plumbing errors
▪ Fast/slow to select desired response time
▪ Uni/bi directional
▪ Display units in PSI/kPa Revolutionary design eliminates costly field plumbing.
▪ Test mode—forces full-scale output Simply run wires to sensors instead of costly plumbing!
▪ Over range icon flashes if differential pressure is over- Also eliminates the need for costly bypass assemblies.
range, alerting technician to move range switch to next Don’t waste time and money on plumbing like
higher dp setting and rescale panel this ever again!
▪ Switch selectable outputs: 2-wire 4-20mA, 3-wire
0-5V or 0-10V

High Reliability
▪ Industry’s only standard built-in t-shaped snubbers
protect sensing elements from water hammer damage
▪ MEMS sensor technology
Snap on deutsch sensor connection Cables are prefabricated and snap
onto sensors with industrial deutsch
▪ Allows for mounting sensor and quick connection of connectors. This eliminates wire
wire later twisting when tightening sensors.
▪ Eliminates wire twisting when tightening sensors in IP65 rated for outdoor use when
pipe fitting
