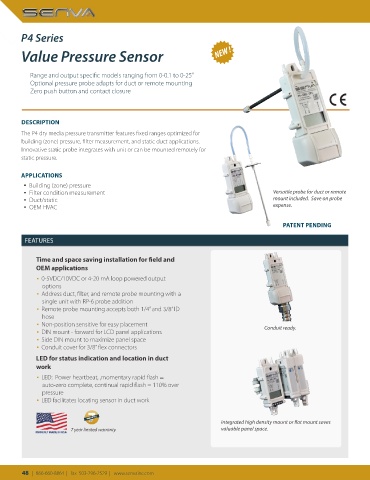

Page 48 - 2020 Catalog

P4 Series

Value Pressure Sensor NEW !

Range and output specific models ranging from 0-0.1 to 0-25”
Optional pressure probe adapts for duct or remote mounting
Zero push button and contact closure

DESCRIPTION

The P4 dry media pressure transmitter features fixed ranges optimized for
building (zone) pressure, filter measurement, and static duct applications.
Innovative static probe integrates with unit or can be mounted remotely for
static pressure.

APPLICATIONS
▪ Building (zone) pressure
▪ Filter condition measurement Versatile probe for duct or remote
▪ Duct/static mount included. Save on probe
▪ OEM HVAC expense.

PATENT PENDING

TURES
FEATURES
FEA
Time and space saving installation for field and
OEM applications

▪ 0-5VDC/10VDC or 4-20 mA loop powered output
options
▪ Address duct, filter, and remote probe mounting with a
single unit with RP-6 probe addition
▪ Remote probe mounting accepts both 1/4” and 3/8” ID
hose
▪ Non-position sensitive for easy placement Conduit ready.
▪ DIN mount - forward for LCD panel applications
▪ Side DIN mount to maximize panel space
▪ Conduit cover for 3/8” flex connectors
LED for status indication and location in duct
work
▪ LED: Power heartbeat, ,momentary rapid flash =
auto-zero complete, continual rapid flash = 110% over
pressure
▪ LED facilitates locating sensor in duct work

Integrated high density mount or flat mount saves
7 year limited warranty valuable panel space.
PROUDLY MADE IN USA
Proudly

Made in USA
