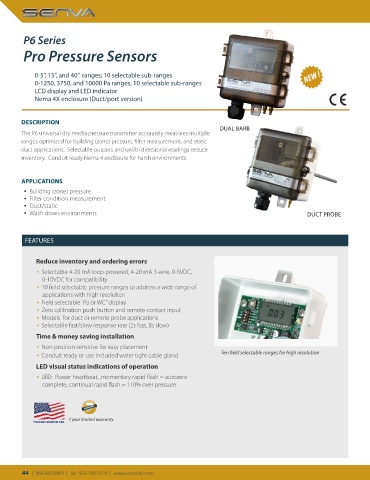

Page 44 - 2020 Catalog

P6 Series

Pro Pressure Sensors

0-5”, 15”, and 40” ranges; 10 selectable sub-ranges NEW !
0-1250, 3750, and 10000 Pa ranges; 10 selectable sub-ranges
LCD display and LED indicator
Nema 4X enclosure (Duct/port version)

DESCRIPTION
DUAL BARB
The P6 universal dry media pressure transmitter accurately measures multiple
ranges optimized for building (zone) pressure, filter measurement, and static
duct applications. Selectable outputs and uni/bi directional readings reduce
inventory. Conduit ready Nema 4 enclosure for harsh environments.

APPLICATIONS
▪ Building (zone) pressure
▪ Filter condition measurement
▪ Duct/static
▪ Wash down environments DUCT PROBE

FEATURES

Reduce inventory and ordering errors
▪ Selectable 4-20 mA loop-powered, 4-20 mA 3-wire, 0-5VDC,
0-10VDC for compatibility
▪ 10 field selectable pressure ranges to address a wide range of
applications with high resolution
▪ Field selectable Pa or WC” display
▪ Zero calibration push button and remote contact input
▪ Models for duct or remote probe applications Ten field selectable ranges for high resolution
▪ Selectable fast/slow response rate (2s fast, 8s slow)
Time & money saving installation

▪ Non-position sensitive for easy placement
▪ Conduit ready or use included water tight cable gland Ten field selectable ranges for high resolution

LED visual status indications of operation
▪ LED: Power heartbeat, ,momentary rapid flash = autozero
complete, continual rapid flash = 110% over pressure

7 year limited warranty
PROUDLY MADE IN USA

Proudly

Made in USA

44 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
