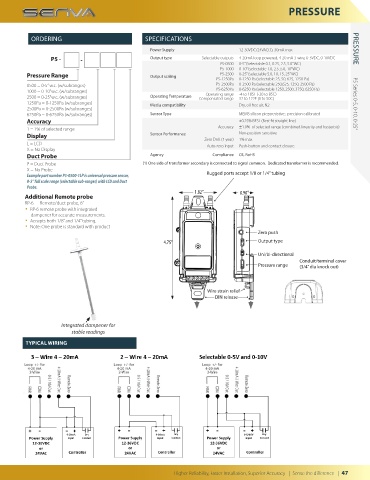

Page 47 - 2020 Catalog

PRESSURE

ORDERING SPECIFICATIONS

Power Supply 12-30VDC/24VAC(1), 30mA max PRESSURE
P5 - - Output type Selectable outputs 4-20mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
P5-0500 0-5” (Selectable 0.1, 0.25, 2.5, 5.0” WC)
P5-1000 0-10” (selectable 1.0, 2.5 ,5.0, 10”WC)
Pressure Range Output scaling P5-2500 0-25” (selectable 5.0, 10, 15, 25” WC)
P5-1250Pa 0-1250 Pa (selectable 25, 50, 625, 1250 Pa)
0500 = 0-5” w.c. (w/subranges) P5-2500Pa 0-2500 Pa (selectable 250,625, 1250, 2500 Pa)
1000 = 0-10”w.c. (w/subranges) P5-6250Pa 0-6250 Pa (selectable 1250, 2500, 3750, 6250 Pa)
Operating range
2500 = 0-25”w.c. (w/subranges) Operating Temperature Compensated range -4 to 185F (-20 to 85C)
32 to 122F (0 to 50C)
1250Pa = 0-1250Pa (w/subranges) Media compatibility Dry, oil-free air, N2 P5 Series 0-5, 0-10, 0-25”
2500Pa = 0-2500Pa (w/subranges)
6250Pa = 0-6250Pa (w/subranges) Sensor Type MEMS silicon piezoresistive; precision calibrated
Accuracy ±0.25% BFSL (Best fit straight line)
1 = 1% of selected range Accuracy ±1.0% of selected range (combined linearity and hysterisis)
Display Sensor Performance Zero Drift (1 year) Non-position sensitive
1% max
L = LCD Auto-zero input Push-button and contact closure
X = No Display
Duct Probe Agency Compliance CE, RoHS
P = Duct Probe (1) One side of transformer secondary is connected to signal common. Dedicated transformer is recommended.
X = No Probe
Example part number P5-0500-1LP is universal pressure sensor, Rugged ports accept 1/8 or 1/4” tubing
0-5” full scale range (selectable sub-ranges) with LCD and Duct
Probe.
1.82” 0.90”
Additional Remote probe
RP-6 Remote/duct probe, 6”
▪ RP-6 remote probe with integrated
dampener for accurate measurements.
▪ Accepts both 1/8” and 1/4” tubing.
▪ Note: One probe is standard with product
Zero push
4.75” Output type

Uni/bi-directional
Conduit/terminal cover
Pressure range (3/4” dia knock out)

Wire strain relief
DIN release

Integrated dampener for
stable readings
TYPICAL WIRING
