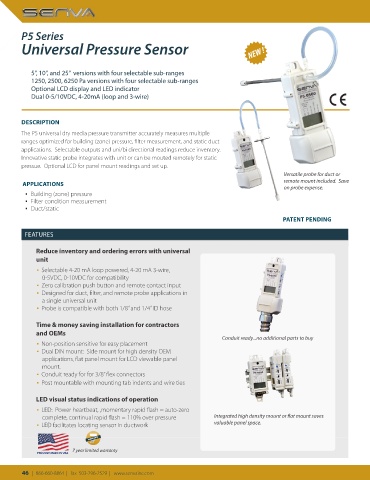

Page 46 - 2020 Catalog

P5 Series
Universal Pressure Sensor NEW !

5”, 10”, and 25” versions with four selectable sub-ranges
1250, 2500, 6250 Pa versions with four selectable sub-ranges
Optional LCD display and LED indicator
Dual 0-5/10VDC, 4-20mA (loop and 3-wire)

DESCRIPTION

The P5 universal dry media pressure transmitter accurately measures multiple
ranges optimized for building (zone) pressure, filter measurement, and static duct
applications. Selectable outputs and uni/bi directional readings reduce inventory.
Innovative static probe integrates with unit or can be mouted remotely for static
pressue. Optional LCD for panel mount readings and set up.
Versatile probe for duct or
APPLICATIONS remote mount included. Save
on probe expense.
▪ Building (zone) pressure
▪ Filter condition measurement
▪ Duct/static
PATENT PENDING

FEATURES
FEATURES
Reduce inventory and ordering errors with universal
unit
▪ Selectable 4-20 mA loop powered, 4-20 mA 3-wire,
0-5VDC, 0-10VDC for compatibility
▪ Zero calibration push button and remote contact input
▪ Designed for duct, filter, and remote probe applications in
a single universal unit
▪ Probe is compatible with both 1/8” and 1/4” ID hose

Time & money saving installation for contractors
and OEMs
Conduit ready...no additional parts to buy
▪ Non-position sensitive for easy placement
▪ Dual DIN mount: Side mount for high density OEM
applications, flat panel mount for LCD viewable panel
mount.
▪ Conduit ready for for 3/8” flex connectors
▪ Post mountable with mounting tab indents and wire ties

LED visual status indications of operation
▪ LED: Power heartbeat, ,momentary rapid flash = auto-zero
complete, continual rapid flash = 110% over pressure Integrated high density mount or flat mount saves
▪ LED facilitates locating sensor in ductwork valuable panel space.

Proudly
7 year limited warranty
PROUDLY MADE IN USA
Made in the U.S.A.
