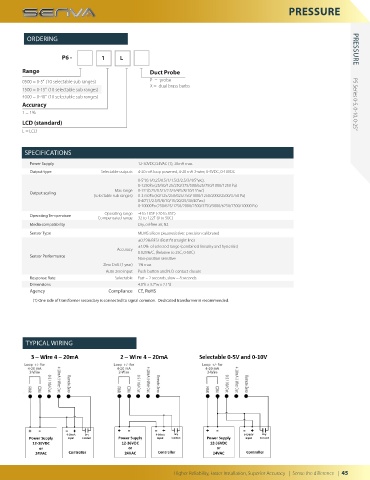

Page 45 - 2020 Catalog

PRESSURE
PRESSURE

ORDERING

P6 - 1 L PRESSURE

Range Duct Probe
0500 = 0-5” (10 selectable sub ranges) P = probe
X = dual brass barbs
1500 = 0-15” (10 selectable sub ranges)
4000 = 0-40” (10 selectable sub ranges)
Accuracy P5 Series 0-5, 0-10, 0-25”
1 = 1%
LCD (standard)
L = LCD

SPECIFICATIONS
Power Supply 12-30VDC/24VAC (1), 30mA max.
Output type Selectable outputs 4-20 mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC
0-5” (0.1/0.25/0.5/1/1.5/2/2.5/3/4/5”wc),
0-1250Pa (25/50/125/250/375/500/625/750/1000/1250 Pa)
Max range 0-15” (0.25/0.5/1/2.5/3/4/5/8/10/15”wc)
Output scaling
(selectable sub ranges) 0-3750Pa (50/125/250/625/750/1000/1250/2000/2500/3750 Pa)
0-40” (1/2.5/5/8/10/15/20/25/30/40”wc)
0-10000Pa (250/625/1250/2000/2500/3750/5000/6250/7500/10000 Pa)
Operating Temperature Operating range -4 to 185F (-20 to 85C)
Compensated range 32 to 122F (0 to 50C)
Media compatibility Dry, oil-free air, N2
Sensor Type MEMS silicon piezoresistive; precision calibrated
±0.25% BFSL (Best fit straight line)
±1.0% of selected range (combined linearity and hysterisis)
Accuracy 0.025%/C, (Relative to 25C, 0-50C)
Sensor Performance
Non-position sensitive
Zero Drift (1 year) 1% max
Auto-zero input Push-button and N.O. contact closure
Response Rate Selectable Fast = 2 seconds, slow = 8 seconds
Dimensions 4.0”h x 3.7”w x 2.1”d
Agency Compliance CE, RoHS
(1) One side of transformer secondary is connected to signal common. Dedicated transformer is recommended.

TYPICAL WIRING

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 45
