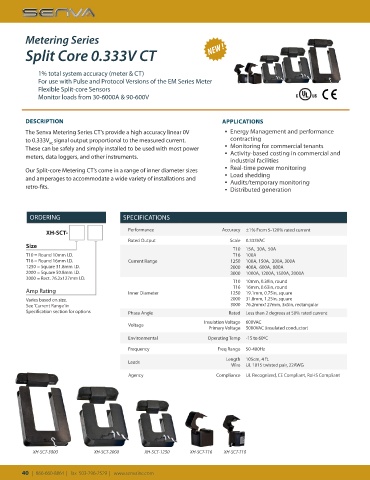

Page 40 - 2020 Catalog

Metering Series
Split Core 0.333V CT NEW !

1% total system accuracy (meter & CT)
For use with Pulse and Protocol Versions of the EM Series Meter
Flexible Split-core Sensors
Monitor loads from 30-6000A & 90-600V Energy Monitor
E474343

DESCRIPTION APPLICATIONS
The Senva Metering Series CT’s provide a high accuracy linear 0V ▪ Energy Management and performance
to 0.333V signal output proportional to the measured current. contracting
AC
These can be safely and simply installed to be used with most power ▪ Monitoring for commercial tenants
meters, data loggers, and other instruments. ▪ Activity-based costing in commercial and
industrial facilities
Our Split-core Metering CT’s come in a range of inner diameter sizes ▪ Real-time power monitoring
and amperages to accommodate a wide variety of installations and ▪ Load shedding
▪ Audits/temporary monitoring
retro-fits. ▪ Distributed generation

ORDERING SPECIFICATIONS

XH-SCT- Performance Accuracy ±1% From 5-120% rated current
Rated Output Scale 0.333VAC
Size
T10 15A, 30A, 50A
T10 = Round 10mm I.D. T16 100A
T16 = Round 16mm I.D. Current Range 1250 100A, 150A, 200A, 300A
1250 = Square 31.8mm I.D. 2000 400A, 600A, 800A
2000 = Square 50.8mm I.D. 3000 1000A, 1200A, 1500A, 2000A
3000 = Rect. 76.2x127mm I.D.
T10 10mm, 0.39in, round
T16 16mm, 0.63in, round
Amp Rating Inner Diameter 1250 19.1mm, 0.75in, square
Varies based on size. 2000 31.8mm, 1.25in, square
See ‘Current Range’ in 3000 76.2mmx127mm, 3x5in, rectangular
Specification section for options Phase Angle Rated Less than 2 degrees at 50% rated current
Insulation Voltage 600VAC
Voltage
Primary Voltage 5000VAC (insulated conductor)
Environmental Operating Temp -15 to 60oC
Frequency Freq Range 50-400Hz

Length 105cm, 4 ft.
Leads
Wire UL 1015 twisted pair, 22AWG
Agency Compliance UL Recognized, CE Compliant, RoHS Compliant

XH-SCT-3000 XH-SCT-2000 XH-SCT-1250 XH-SCT-T16 XH-SCT-T10
