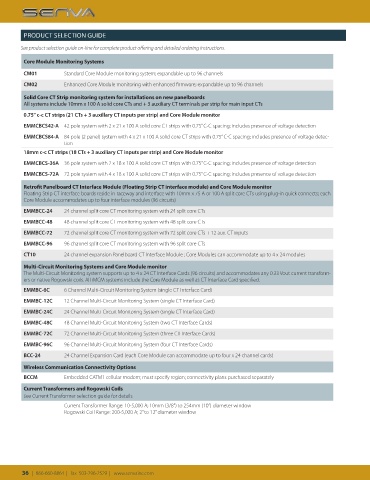

PRODUCT SELECTION GUIDE

        See product selection guide on-line for complete product offering and detailed ordering instructions.

         Core Module Monitoring Systems
         CM01         Standard Core Module monitoring system; expandable up to 96 channels

         CM02         Enhanced Core Module monitoring with enhanced firmware; expandable up to 96 channels
         Solid Core CT Strip monitoring system for installations on new panelboards
         All systems include 10mm x 100 A solid core CTs and + 3 auxiliary CT terminals per strip for main input CTs
         0.75" c-c CT strips (21 CTs + 3 auxillary CT inputs per strip) and Core Module monitor
         EMMCBCS42-A 42 pole system with 2 x 21 x 100 A solid core CT strips with 0.75” C-C spacing; includes presence of voltage detection

         EMMCBCS84-A 84 pole (2 panel) system with 4 x 21 x 100 A solid core CT strips with 0.75” C-C spacing; includes presence of voltage detec-
                      tion
         18mm c-c CT strips (18 CTs + 3 auxiliary CT inputs per strip) and Core Module monitor
         EMMCBCS-36A 36 pole system with 2 x 18 x 100 A solid core CT strips with 0.75” C-C spacing; includes presence of voltage detection
         EMMCBCS-72A 72 pole system with 4 x 18 x 100 A solid core CT strips with 0.75” C-C spacing; includes presence of voltage detection

         Retrofit Panelboard CT Interface Module (Floating Strip CT interface module) and Core Module monitor
         Floating Strip CT interface boards reside in raceway and interface with 10mm x 75 A or 100 A split core CTs using plug-in quick connects; each
         Core Module accommodates up to four interface modules (96 circuits)

         EMMBCC-24    24 channel split core CT monitoring system with 24 split core CTs
         EMMBCC-48    48 channel split core CT monitoring system with 48 split core CTs
         EMMBCC-72    72 channel split core CT monitoring system with 72 split core CTs + 12 aux. CT inputs

         EMMBCC-96    96 channel split core CT monitoring system with 96 split core CTs
         CT10         24 channel expansion Panelboard CT Interface Module ; Core Modules can accommodate up to 4 x 24 modules
         Multi-Circuit Monitoring Systems and Core Module monitor
         The Multi-Circuit Monitoring system supports up to 4 x 24 CT Interface Cards (96 circuits) and accommodates any 0.33 Vout current transform-
         ers or native Rogowski coils. All iMCM systems include the Core Module as well as CT Interface Card specified.
         EMMBC-6C     6 Channel Multi-Circuit Monitoring System (single CT Interface Card)
         EMMBC-12C    12 Channel Multi-Circuit Monitoring System (single CT Interface Card)

         EMMBC-24C    24 Channel Multi-Circuit Monitoring System (single CT Interface Card)
         EMMBC-48C    48 Channel Multi-Circuit Monitoring System (two CT Interface Cards)
         EMMBC-72C    72 Channel Multi-Circuit Monitoring System (three CT Interface Cards)
         EMMBC-96C    96 Channel Multi-Circuit Monitoring System (four CT Interface Cards)

         BCC-24       24 Channel Expansion Card (each Core Module can accommodate up to four x 24 channel cards)
         Wireless Communication Connectivity Options
         BCCM         Embedded CATM1 cellular modem; must specify region; connectivity plans purchased separately
         Current Transformers and Rogowski Coils
         see Current Transformer selection guide for details
                      Current Transformer Range: 10-5,000 A; 10mm (3/8”) to 254mm (10”) diameter window
                      Rogowski Coil Range: 200-5,000 A; 2” to 12” diameter window
