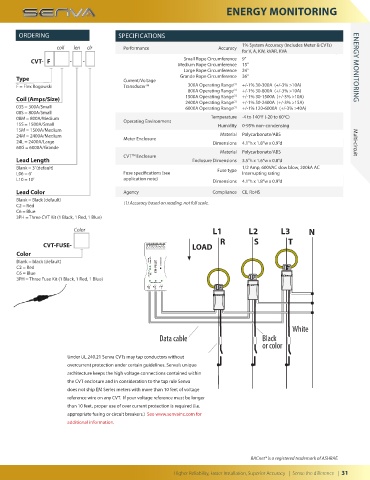

Page 31 - 2020 Catalog

ENERGY MONITORING

ORDERING SPECIFICATIONS

coil len clr Performance Accuracy 1% System Accuracy (Includes Meter & CVTs)
for V, A, KW, kVAR, KVA
CVT- F - - Small Rope Circumference 9”
Medium Rope Circumference 15” ENERGY MONITORING
Large Rope Circumference 24” ENERGY MONITORING
Type Current/Voltage Grande Rope Circumference 36”
F = Flex Rogowski Transducer TM 300A Operating Range (1) +/-1% 30-300A (+/-3% >10A)
800A Operating Range (1) +/-1% 30-800A (+/-3% >10A)
Coil (Amps/Size) 1500A Operating Range (1) +/-1% 30-1500A (+/-3% >10A)
+/-1% 50-2400A (+/-3% >15A)
2400A Operating Range
(1)
03S = 300A/Small 6000A Operating Range (1) +/-1% 120-6000A (+/-3% >40A)
08S = 800A/Small
o
o
08M = 800A/Medium Operating Environment Temperature -4 to 140 F (-20 to 60 C)
15S = 1500A/Small Humidity 0-95% non-condensing
15M = 1500A/Medium
24M = 2400A/Medium Meter Enclosure Material Polycarbonate/ABS EM Series Multi-circuit
24L = 2400A/Large Dimensions 4.1”h x 1.8”w x 0.9”d
60G = 6000A/Grande
Material Polycarbonate/ABS
TM
CVT Enclosure
Lead Length Enclosure Dimensions 3.5”h x 1.6”w x 0.8”d
Blank = 3’ (default) Fuse type 1/2 Amp, 600VAC slow blow, 200kA AC
L06 = 6’ Fuse specifications (see Interrupting rating
L10 = 10’ application note) Dimensions 4.1”h x 1.8”w x 0.9”d
Lead Color Agency Compliance CE, RoHS
Blank = Black (default)
C2 = Red (1) Accuracy based on reading, not full scale.
C6 = Blue
3PH = Three CVT Kit (1 Black, 1 Red, 1 Blue)
Color L1 L2 L3 N
R S T
CVT-FUSE- 1 2 1 2 LOAD
Color
Blank = black (default) Device Status LED
C2 = Red EM-PULSE
C6 = Blue Line Status LED
3PH = Three Fuse Kit (1 Black, 1 Red, 1 Blue) CVT Status LEDs
R S T
A L1 B L2 C L3

White
Data cable Black
or color

Under UL 240.21 Senva CVTs may tap conductors without
overcurrent protection under certain guidelines. Senva’s unique
architecture keeps the high voltage connections contained within
the CVT enclosure and in consideration to the tap rule Senva
does not ship EM Series meters with more than 10 feet of voltage
reference wire on any CVT. If your voltage reference must be longer
than 10 feet, proper use of over current protection is required (i.e.
appropriate fusing or circuit breakers.) See www.senvainc.com for
additional information.

BACnet® is a registered trademark of ASHRAE.
Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 31
