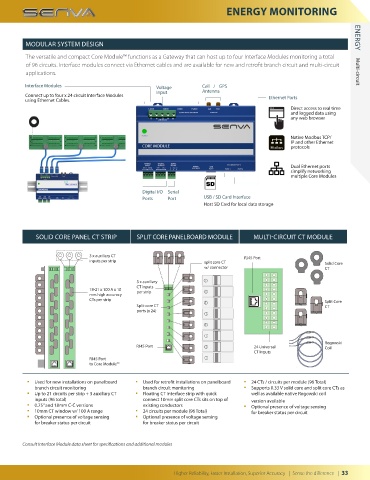

Page 33 - 2020 Catalog

ENERGY MONITORING

MODULAR SYSTEM DESIGN

The versatile and compact Core Module™ functions as a Gateway that can host up to four Interface Modules monitoring a total ENERGY Multi-circuit
of 96 circuits. Interface modules connect via Ethernet cables and are available for new and retrofit branch circuit and multi-circuit
applications.

Interface Modules Voltage Cell / GPS
Connect up to four x 24 circuit Interface Modules Input Antenna Ethernet Ports
using Ethernet Cables.
Direct access to real time
and logged data using
any web browser

Native Modbus TCP/
IP and other Ethernet
protocols

Dual Ethernet ports
simplify networking
multiple Core Modules

Digital I/O Serial
Ports Port USB / SD Card Interface
Host SD Card for local data storage

SOLID CORE PANEL CT STRIP SPLIT CORE PANELBOARD MODULE MULTI-CIRCUIT CT MODULE

3 x auxiliary CT RJ45 Port
inputs per strip split core CT Solid Core
w/ connector CT

3 x auxiliary
CT inputs
18-21 x 100 A x 10 per strip
mm high accuracy
CTs per strip Split Core
Split core CT CT
ports (x 24)

Rogowski
RJ45 Port 24 Universal Coil
CT Inputs
RJ45 Port
to Core Module™

▪ Used for new installations on panelboard ▪ Used for retrofit installations on panelboard ▪ 24 CTs / circuits per module (96 Total)
branch circuit monitoring branch circuit monitoring ▪ Supports 0.33 V solid core and split core CTs as
▪ Up to 21 circuits per strip + 3 auxiliary CT ▪ Floating CT interface strip with quick well as available native Rogowski coil
inputs (96 total) connect 10mm split core CTs sits on top of version available
▪ 0.75” and 18mm C-C versions existing conductors ▪ Optional presence of voltage sensing
▪ 10mm CT window w/ 100 A range ▪ 24 circuits per module (96 Total) for breaker status per circuit
▪ Optional presence of voltage sensing ▪ Optional presence of voltage sensing
for breaker status per circuit for breaker status per circuit

Consult Interface Module data sheet for specifications and additional modules
