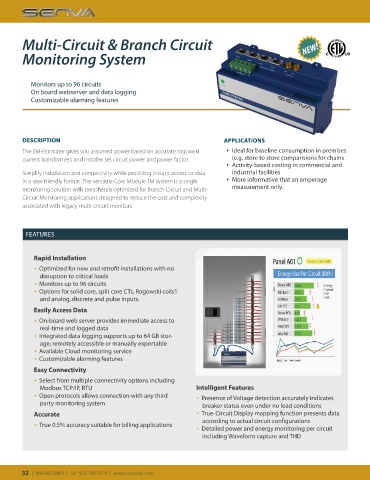

Page 32 - 2020 Catalog

Multi-Circuit & Branch Circuit NEW!

Monitoring System

Monitors up to 96 circuits
On board webserver and data logging
Customizable alarming features

DESCRIPTION APPLICATIONS
The EM-Estimater gives you assumed power based on accurate rogowski ▪ Ideal for baseline consumption in premises
current transformers and installer set circuit power and power factor. (e.g. store to store comparisions for chains
▪ Activity-based costing in commercial and
Simplify installation and connectivity while providing instant access to data industrial facilities
in a user friendly format. The versatile Core Module TM system is a single ▪ More informative that an amperage
monitoring solution with peripherals optimized for Branch Circuit and Multi- measurement only.
Circuit Monitoring applications designed to reduce the cost and complexity
associated with legacy multi-circuit monitors.

FEATURES

Rapid Installation
▪ Optimized for new and retrofit installations with no
disruption to critical loads
▪ Monitors up to 96 circuits
▪ Options for solid core, split core CTs, Rogowski coils1
and analog, discrete and pulse inputs.
Easily Access Data
▪ On-board web server provides immediate access to
real-time and logged data
▪ Integrated data logging supports up to 64 GB stor-
age; remotely accessible or manually exportable
▪ Available Cloud monitoring service
▪ Customizable alarming features
Easy Connectivity

▪ Select from multiple connectivity options including
Modbus TCP/IP, RTU Intelligent Features
▪ Open protocols allows connection with any third ▪ Presence of Voltage detection accurately indicates
party monitoring system breaker status even under no load conditions
Accurate ▪ True-Circuit Display mapping function presents data
according to actual circuit configurations
▪ True 0.5% accuracy suitable for billing applications
▪ Detailed power and energy monitoring per circuit
including Waveform capture and THD
