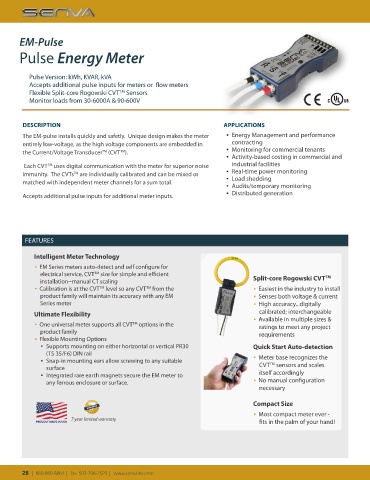

Page 28 - 2020 Catalog

EM-Pulse

Pulse Energy Meter

Pulse Version: kWh, KVAR, kVA
Accepts additional pulse inputs for meters or flow meters
Flexible Split-core Rogowski CVT Sensors
TM
Monitor loads from 30-6000A & 90-600V Energy Monitor
E474343

DESCRIPTION APPLICATIONS
The EM-pulse installs quickly and safetly. Unique design makes the meter ▪ Energy Management and performance
entirely low-voltage, as the high voltage components are embedded in contracting
the Current/Voltage Transducer (CVT ). ▪ Monitoring for commercial tenants
TM
TM
▪ Activity-based costing in commercial and
Each CVT uses digital communication with the meter for superior noise industrial facilities
TM
immunity. The CVTs are individually calibrated and can be mixed or ▪ Real-time power monitoring
TM
matched with independent meter channels for a sum total. ▪ Load shedding
▪ Audits/temporary monitoring
Accepts additional pulse inputs for additional meter inputs. ▪ Distributed generation

FEATURES

Intelligent Meter Technology
▪ EM Series meters auto-detect and self configure for
electrical service, CVT size for simple and efficient TM
TM
installation--manual CT scaling Split-core Rogowski CVT
▪ Calibration is at the CVT level so any CVT from the ▪ Easiest in the industry to install
TM
TM
product family will maintain its accuracy with any EM ▪ Senses both voltage & current
Series meter ▪ High accuracy...digitally
Ultimate Flexibility calibrated; interchangeable
▪ Available in multiple sizes &
▪ One universal meter supports all CVT options in the ratings to meet any project
TM
product family requirements
▪ Flexible Mounting Options
▪ Supports mounting on either horizontal or vertical PR30 Quick Start Auto-detection
(TS 35/F6) DIN rail
▪ Snap-in mounting ears allow screwing to any suitable ▪ Meter base recognizes the
TM
surface CVT sensors and scales
▪ Integrated rare earth magnets secure the EM meter to itself accordingly
any ferrous enclosure or surface. ▪ No manual configuration
necessary

Compact Size

▪ Most compact meter ever -
7 year limited warranty
PROUDLY MADE IN USA fits in the palm of your hand!

28 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
