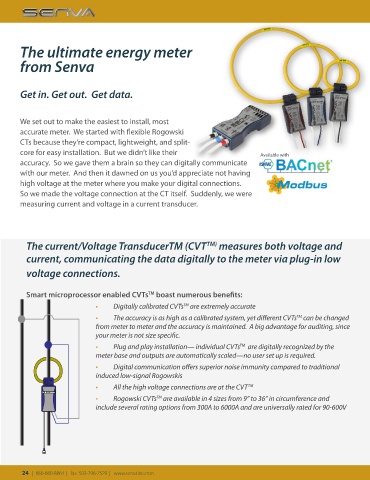

Page 24 - 2020 Catalog

The ultimate energy meter

from Senva

Get in. Get out. Get data.

We set out to make the easiest to install, most
accurate meter. We started with flexible Rogowski
CTs because they’re compact, lightweight, and split-
core for easy installation. But we didn’t like their Available with
accuracy. So we gave them a brain so they can digitally communicate

with our meter. And then it dawned on us you’d appreciate not having
high voltage at the meter where you make your digital connections.
So we made the voltage connection at the CT itself. Suddenly, we were
measuring current and voltage in a current transducer.

The current/Voltage TransducerTM (CVT measures both voltage and
TM)
current, communicating the data digitally to the meter via plug-in low

voltage connections.

Smart microprocessor enabled CVTs boast numerous benefits:
TM
TM
▪ Digitally calibrated CVTs are extremely accurate
▪ The accuracy is as high as a calibrated system, yet different CVTs can be changed
TM
from meter to meter and the accuracy is maintained. A big advantage for auditing, since
your meter is not size specific.

TM
▪ Plug and play installation— individual CVTs are digitally recognized by the
meter base and outputs are automatically scaled—no user set up is required.
▪ Digital communication offers superior noise immunity compared to traditional
induced low-signal Rogowskis

▪ All the high voltage connections are at the CVT TM
▪ Rogowski CVTs are available in 4 sizes from 9” to 36” in circumference and
TM
include several rating options from 300A to 6000A and are universally rated for 90-600V
