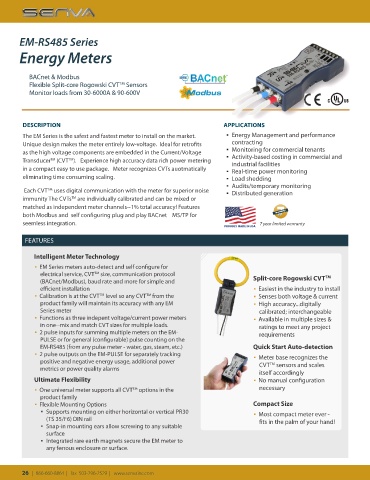

Page 26 - 2020 Catalog

EM-RS485 Series

Energy Meters

BACnet & Modbus
Flexible Split-core Rogowski CVT Sensors
TM
Monitor loads from 30-6000A & 90-600V
Energy Monitor
E474343

DESCRIPTION APPLICATIONS
The EM Series is the safest and fastest meter to install on the market. ▪ Energy Management and performance
Unique design makes the meter entirely low-voltage. Ideal for retrofits contracting
as the high voltage components are embedded in the Current/Voltage ▪ Monitoring for commercial tenants
TM
Transducer (CVT ). Experience high accuracy data rich power metering ▪ Activity-based costing in commercial and
TM
industrial facilities
in a compact easy to use package. Meter recognizes CVTs auotmatically ▪ Real-time power monitoring
eliminating time consuming scaling. ▪ Load shedding
▪ Audits/temporary monitoring
Each CVT uses digital communication with the meter for superior noise ▪ Distributed generation
TM
immunity The CVTs are individually calibrated and can be mixed or
TM
matched as independent meter channels--1% total accuracy! Features
both Modbus and self configuring plug and play BACnet MS/TP for
seemless integration. 7 year limited warranty
PROUDLY MADE IN USA

FEATURES

Intelligent Meter Technology
▪ EM Series meters auto-detect and self configure for
electrical service, CVT size, communication protocol TM
TM
(BACnet/Modbus), baud rate and more for simple and Split-core Rogowski CVT
efficient installation ▪ Easiest in the industry to install
▪ Calibration is at the CVT level so any CVT from the ▪ Senses both voltage & current
TM
TM
product family will maintain its accuracy with any EM ▪ High accuracy...digitally
Series meter calibrated; interchangeable
▪ Functions as three indepent voltage/current power meters ▪ Available in multiple sizes &
in one--mix and match CVT sizes for multiple loads. ratings to meet any project
▪ 2 pulse inputs for summing multiple meters on the EM- requirements
PULSE or for general (configurable) pulse counting on the
EM-RS485 (from any pulse meter - water, gas, steam, etc.) Quick Start Auto-detection
▪ 2 pulse outputs on the EM-PULSE for separately tracking ▪ Meter base recognizes the
positive and negative energy usage, additional power CVT sensors and scales
TM
metrics or power quality alarms
itself accordingly
Ultimate Flexibility ▪ No manual configuration
▪ One universal meter supports all CVT options in the necessary
TM
product family
▪ Flexible Mounting Options Compact Size
▪ Supports mounting on either horizontal or vertical PR30 ▪ Most compact meter ever -
(TS 35/F6) DIN rail fits in the palm of your hand!
▪ Snap-in mounting ears allow screwing to any suitable
surface
▪ Integrated rare earth magnets secure the EM meter to
any ferrous enclosure or surface.
