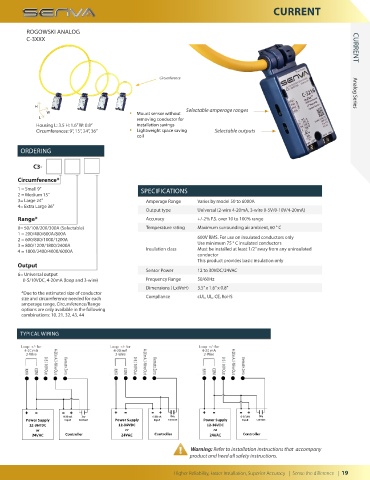

Page 19 - 2020 Catalog

CURRENT

ROGOWSKI ANALOG
C-3XXX CURRENT

Circumference

H Selectable amperage ranges Analog Series
W ▪ Mount sensor without
L removing conductor for
Housing L: 3.5 H: 1.6” W: 0.8” installation savings
Circumferences: 9”, 15”, 24”, 36” ▪ Lightweight space saving Selectable outputs
coil
ORDERING

C3-
Circumference*
1 = Small 9” SPECIFICATIONS
2 = Medium 15”
3= Large 24” Amperage Range Varies by model 50 to 6000A
4= Extra Large 36”
Output type Universal (2-wire 4-20mA, 3-wire 0-5V/0-10V/4-20mA)
Range* Accuracy +/-2% F.S. over 10 to 100% range
0= 50/100/200/300A (Selectable) Temperature rating Maximum surrounding air ambient, 60 ° C
1 = 200/400/600A/800A
2 = 600/800/1000/1200A 600V RMS. For use on insulated conductors only
3 = 800/1200/1800/2400A Use minimum 75 ° C insulated conductors
4 = 1800/2400/4000/6000A Insulation class Must be installed at least 1/2” away from any uninsulated
conductor
This product provides basic insulation only
Output
Sensor Power 12 to 30VDC/24VAC
6= Universal output
0-5/10VDC, 4-20mA (loop and 3-wire) Frequency Range 50/60Hz
Dimensions ( LxWxH) 3.5” x 1.6” x 0.8”
*Due to the estimated size of conductor
size and circumference needed for each Compliance cUL, UL, CE, RoHS
amperage range, Circumference/Range
options are only available in the following
combinations: 10, 21, 32, 43, 44

TYPICAL WIRING

Warning: Refer to installation instructions that accompany
product and heed all safety instructions.

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 19
