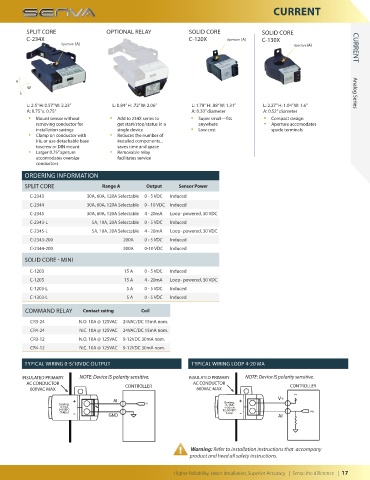

Page 17 - 2020 Catalog

CURRENT

SPLIT CORE OPTIONAL RELAY SOLID CORE SOLID CORE
C-234X C-120X Aperture (A) C-130X
Aperture (A) #! Rplace image? Aperture (A) CURRENT

H
W
L Analog Series
L: 2.5” H: 0.57” W: 2.23” L: 0.84” H: .72” W: 2.06” L: 1.78” H: .88” W: 1.31” L: 2.27” H: 1.04” W: 1.6”
A: 0.75”x. 0.75” A: 0.30” diameter A: 0.52” diameter
▪ Mount sensor without ▪ Add to 234X series to ▪ Super small—fits ▪ Compact design
removing conductor for get start/stop/status in a anywhere ▪ Aperture accomodates
installation savings single device ▪ Low cost spade terminals
▪ Clamp on conductor with ▪ Reduces the number of
iris, or use detachable base installed components...
toscrew or DIN mount saves time and space
▪ Larger 0.75” apeture ▪ Removable relay
accomodates oversize facilitates service
conductors
ORDERING INFORMATION

SPLIT CORE Range A Output Sensor Power
C-2343 30A, 60A, 120A Selectable 0 - 5 VDC Induced
C-2344 30A, 60A, 120A Selectable 0 - 10 VDC Induced
C-2345 30A, 60A, 120A Selectable 4 - 20mA Loop- powered, 30 VDC
C-2343-L 5A, 10A, 20A Selectable 0 - 5 VDC Induced
C-2345-L 5A, 10A, 20A Selectable 4 - 20mA Loop- powered, 30 VDC
C-2343-200 200A 0 - 5 VDC Induced
C-2344-200 200A 0-10 VDC Induced
SOLID CORE - MINI
C-1203 15 A 0 - 5 VDC Induced
C-1205 15 A 4 - 20mA Loop- powered, 30 VDC
C-1203-L 5 A 0 - 5 VDC Induced
C-1303-L 5 A 0 - 5 VDC Induced
COMMAND RELAY Contact rating Coil

CR3-24 N.O. 10A @ 125VAC 24VAC/DC 15mA nom.
CR4-24 N.C. 10A @ 125VAC 24VAC/DC 15mA nom.
CR3-12 N.O. 10A @ 125VAC 9-12VDC 30mA nom.
CR4-12 N.C. 10A @ 125VAC 9-12VDC 30mA nom.

TYPICAL WIRING 0-5/10VDC OUTPUT TYPICAL WIRING LOOP 4-20 MA

INSULATED PRIMARY NOTE: Device IS polarity sensitive. INSULATED PRIMARY NOTE: Device IS polarity sensitive.
AC CONDUCTOR CONTROLLER AC CONDUCTOR CONTROLLER
600VAC MAX v 600VAC MAX v
V+
V+
AI Scaling: +
Scaling: + AI 0-15A
0-15A
0-5VDC 4-20mA
Output Loop Vdc
GND 12-30VDC - AI
-

Warning: Refer to installation instructions that accompany
product and heed all safety instructions.

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 17
