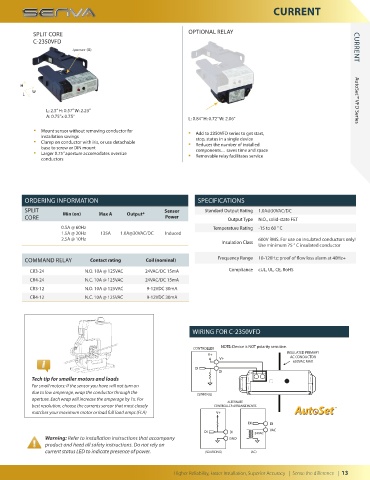

Page 13 - 2020 Catalog

CURRENT

SPLIT CORE OPTIONAL RELAY
C-2350VFD
Aperture (A) CURRENT

H
W
L AutoSet™ VFD Series

L: 2.5” H: 0.57” W: 2.23”
A: 0.75”x 0.75” L: 0.84” H: 0.72” W: 2.06”

▪ Mount sensor without removing conductor for ▪
installation savings Add to 2350VFD series to get start,
▪ Clamp on conductor with iris, or use detachable ▪ stop, status in a single device
base to screw or DIN mount Reduces the number of installed
▪ Larger 0.75” aperture accomodates oversize ▪ components… saves time and space
Removable relay facilitates service
conductors

ORDERING INFORMATION SPECIFICATIONS

SPLIT Sensor Standard Output Rating 1.0A@30VAC/DC
CORE Min (on) Max A Output* Power Output Type N.O., solid-state FET
0.5A @ 60Hz Temperature Rating -15 to 60 ° C
1.5A @ 20Hz 135A 1.0A@30VAC/DC Induced
2.5A @ 10Hz 600V RMS. For use on insulated conductors only!
Insulation Class
Use minimum 75 ° C insulated conductor
COMMAND RELAY Contact rating Coil (nominal) Frequency Range 10-120Hz; proof of flow loss alarm at 40Hz+
CR3-24 N.O. 10A @ 125VAC 24VAC/DC 15mA Compliance cUL, UL, CE, RoHS
CR4-24 N.C. 10A @ 125VAC 24VAC/DC 15mA
CR3-12 N.O. 10A @ 125VAC 9-12VDC 30mA
CR4-12 N.C. 10A @ 125VAC 9-12VDC 30mA

WIRING FOR C-2350VFD

CONTROLLER NOTE: Device is NOT polarity sensitive.
V+ INSULATED PRIMARY
V+ AC CONDUCTOR
600VAC MAX
v
DI
DI
Tech tip for smaller motors and loads
For small motors: If the sensor you have will not turn on
due to low amperage, wrap the conductor through the (SINKING)
aperture. Each wrap will increase the amperage by 1x. For
ALTERNATE
best resolution, choose the currents sensor that most closely CONTROLLER ARRANGEMENTS
matches your maximum motor or load full load amps (FLA) V+
DI DI
DI DI 24VAC VAC
Warning: Refer to installation instructions that accompany GND
product and heed all safety instructions. Do not rely on
current status LED to indicate presence of power. (SOURCING) (AC)

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 13
