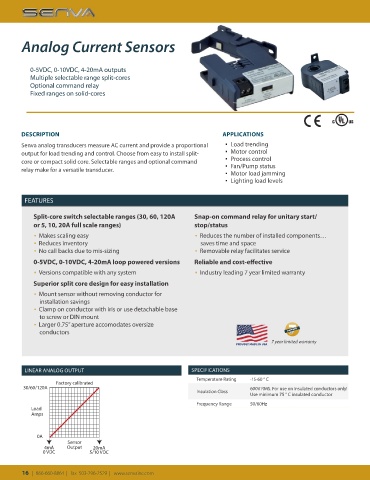

Page 16 - 2020 Catalog

Analog Current Sensors

0-5VDC, 0-10VDC, 4-20mA outputs
Multiple selectable range split-cores
Optional command relay
Fixed ranges on solid-cores

Energy Monitor
E474343
DESCRIPTION APPLICATIONS
Senva analog transducers measure AC current and provide a proportional ▪ Load trending
output for load trending and control. Choose from easy to install split- ▪ Motor control
core or compact solid core. Selectable ranges and optional command ▪ Process control
relay make for a versatile transducer. ▪ Fan/Pump status
▪ Motor load jamming
▪ Lighting load levels

FEATURES

Split-core switch selectable ranges (30, 60, 120A Snap-on command relay for unitary start/
or 5, 10, 20A full scale ranges) stop/status
▪ Makes scaling easy ▪ Reduces the number of installed components…
▪ Reduces inventory saves time and space
▪ No call backs due to mis-sizing ▪ Removable relay facilitates service
0-5VDC, 0-10VDC, 4-20mA loop powered versions Reliable and cost-effective
▪ Versions compatible with any system ▪ Industry leading 7 year limited warranty

Superior split core design for easy installation
▪ Mount sensor without removing conductor for
installation savings
▪ Clamp on conductor with iris or use detachable base
to screw or DIN mount
▪ Larger 0.75” aperture accomodates oversize
conductors
7 year limited warranty
PROUDLY MADE IN USA

LINEAR ANALOG OUTPUT SPECIFICATIONS
Temperature Rating -15-60 ° C
Factory calibrated
30/60/120A 600V RMS. For use on insulated conductors only!
Insulation Class
Use minimum 75 ° C insulated conductor
Frequency Range 50/60Hz
Load
Amps

0A
Sensor
4mA Output 20mA
0 VDC 5/10 VDC
