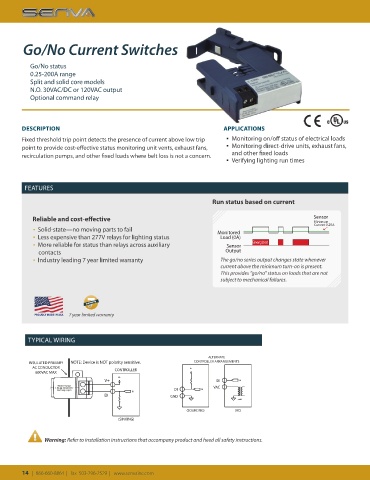

Page 14 - 2020 Catalog

Go/No Current Switches

Go/No status
0.25-200A range
Split and solid core models
N.O. 30VAC/DC or 120VAC output
Optional command relay

Energy Monitor
DESCRIPTION APPLICATIONS E474343
Fixed threshold trip point detects the presence of current above low trip ▪ Monitoring on/off status of electrical loads
point to provide cost-effective status monitoring unit vents, exhaust fans, ▪ Monitoring direct-drive units, exhaust fans,
recirculation pumps, and other fixed loads where belt loss is not a concern. and other fixed loads
▪ Verifying lighting run times

FEATURES

Run status based on current

Reliable and cost-effective Sensor
Minimum
▪ Solid-state—no moving parts to fail Monitored Current 0.25A
▪ Less expensive than 277V relays for lighting status Load (0A)
▪ More reliable for status than relays across auxiliary Sensor Energized
contacts Output
▪ Industry leading 7 year limited warranty The go/no series output changes state whenever
current above the minimum turn-on is present.
This provides “go/no” status on loads that are not
subject to mechanical failures.

INSULATED PRIMARY NOTE: Device is NOT polarity sensitive.
AC CONDUCTOR CONTROLLER
600VAC MAX v
V+
V+
PROUDLY MADE IN USA 7 year limited warranty Status Output
1.0A @ 30VAC/DC
Normally Open
DI
DI
TYPICAL WIRING
(SINKING)
ALTERNATE
INSULATED PRIMARY NOTE: Device is NOT polarity sensitive. CONTROLLER ARRANGEMENTS
AC CONDUCTOR CONTROLLER V+
600VAC MAX v
V+ V+ DI DI
Status Output
1.0A @ 30VAC/DC VAC
Normally Open DI DI
DI
DI GND
24VAC
(SOURCING) (AC)
(SINKING)
ALTERNATE
CONTROLLER ARRANGEMENTS
Warning: Refer to installation instructions that accompany product and heed all safety instructions.
V+
DI DI
DI DI VAC
GND
24VAC
