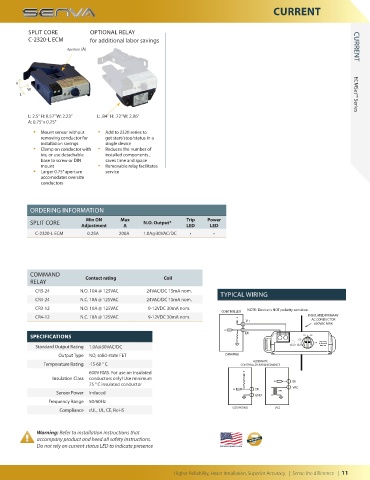

Page 11 - 2020 Catalog

CURRENT

SPLIT CORE OPTIONAL RELAY
C-2320-L ECM for additional labor savings

Aperture (A) CURRENT

H
W
L ECMSet™ Series

L: 2.5” H: 0.57” W: 2.23” L: .84" H: .72” W: 2.06"
A: 0.75"x 0.75"
▪ Mount sensor without ▪ Add to 2320 series to
removing conductor for get start/stop/status in a
installation savings single device
▪ Clamp on conductor with ▪ Reduces the number of
iris, or use detachable installed components...
base to screw or DIN saves time and space
mount ▪ Removable relay facilitates
▪ Larger 0.75” aperture service
accomodates oversize
conductors

ORDERING INFORMATION

Min ON
SPLIT CORE Adjustment Max N.O. Output* Trip Power
LED
LED
A
C-2320-L ECM 0.25A 200A 1.0A@30VAC/DC • •

COMMAND
RELAY Contact rating Coil
CR3-24 N.O. 10A @ 125VAC 24VAC/DC 15mA nom. TYPICAL WIRING
CR4-24 N.C. 10A @ 125VAC 24VAC/DC 15mA nom.
CR3-12 N.O. 10A @ 125VAC 9-12VDC 30mA nom. NOTE: Device is NOT polarity sensitive.
CONTROLLER
CR4-12 N.C. 10A @ 125VAC 9-12VDC 30mA nom. V+ INSULATED PRIMARY
V+ AC CONDUCTOR
600VAC MAX
v
DI DI
SPECIFICATIONS 1.0 2.0
0.5
Set knob
3.0 to desired
Standard Output Rating 1.0A@30VAC/DC Closed Open turn-on
Output Type NO, solid-state FET (SINKING)
ALTERNATE
Temperature Rating -15-60 ° C CONTROLLER ARRANGEMENTS
600V RMS. For use on insulated V+
Insulation Class conductors only! Use minimum DI
75 ° C insulated conductor DI VAC
DI DI 24VAC
Sensor Power Induced GND
Frequency Range 50/60Hz
(SOURCING) (AC)
Compliance cUL, UL, CE, RoHS

Warning: Refer to installation instructions that
accompany product and heed all safety instructions.
Do not rely on current status LED to indicate presence PROUDLY MADE IN USA

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 11
