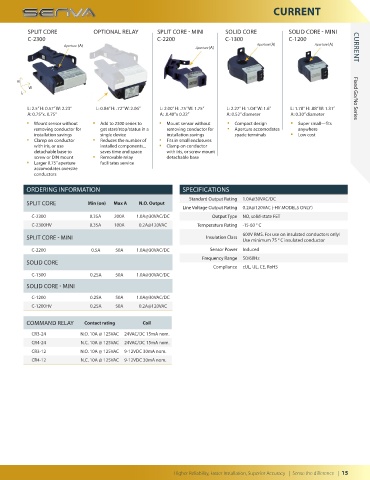

Page 15 - 2020 Catalog

CURRENT

SPLIT CORE OPTIONAL RELAY SPLIT CORE - MINI SOLID CORE SOLID CORE - MINI
C-2300 C-2200 C-1300 C-1200
Aperture (A) Aperture (A) Aperture (A)
Aperture (A) CURRENT

H
W
L Fixed Go/No Series

L: 2.5” H: 0.57” W: 2.23” L: 0.84” H: .72” W: 2.06” L: 2.00” H: .75” W: 1.75” L: 2.27” H: 1.04” W: 1.6” L: 1.78” H: .88” W: 1.31”
A: 0.75”x. 0.75” A: .0.40”x 0.32” A: 0.52” diameter A: 0.30” diameter
▪ Mount sensor without ▪ Add to 2300 series to ▪ Mount sensor without ▪ Compact design ▪ Super small—fits
removing conductor for get start/stop/status in a removing conductor for ▪ Aperture accomodates anywhere
installation savings single device installation savings spade terminals ▪ Low cost
▪ Clamp on conductor ▪ Reduces the number of ▪ Fits in small enclosures
with iris, or use installed components... ▪ Clamp on conductor
detachable base to saves time and space with iris, or screw mount
screw or DIN mount ▪ Removable relay detachable base
▪ Larger 0.75” aperture facilitates service
accomodates oversize
conductors

ORDERING INFORMATION SPECIFICATIONS
Standard Output Rating 1.0A@30VAC/DC
SPLIT CORE Min (on) Max A N.O. Output
Line Voltage Output Rating 0.2A@120VAC (-HV MODELS ONLY)
C-2300 0.35A 200A 1.0A@30VAC/DC Output Type NO, solid-state FET
C-2300HV 0.35A 100A 0.2A@120VAC Temperature Rating -15-60 ° C
600V RMS. For use on insulated conductors only!
SPLIT CORE - MINI Insulation Class Use minimum 75 ° C insulated conductor
C-2200 0.5A 50A 1.0A@30VAC/DC Sensor Power Induced
Frequency Range 50/60Hz
SOLID CORE
Compliance cUL, UL, CE, RoHS
C-1300 0.25A 50A 1.0A@30VAC/DC
SOLID CORE - MINI

C-1200 0.25A 50A 1.0A@30VAC/DC
C-1200HV 0.25A 50A 0.2A@120VAC

COMMAND RELAY Contact rating Coil
CR3-24 N.O. 10A @ 125VAC 24VAC/DC 15mA nom.
CR4-24 N.C. 10A @ 125VAC 24VAC/DC 15mA nom.
CR3-12 N.O. 10A @ 125VAC 9-12VDC 30mA nom.
CR4-12 N.C. 10A @ 125VAC 9-12VDC 30mA nom.

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 15
