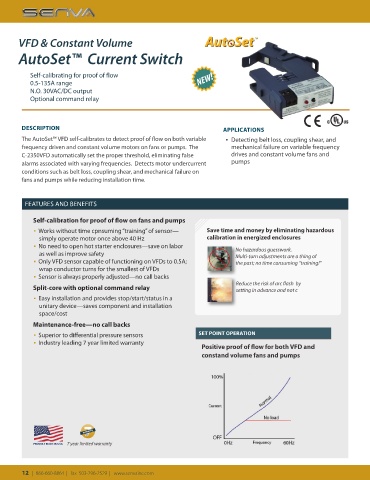

Page 12 - 2020 Catalog

VFD & Constant Volume

AutoSet™ Current Switch

Self-calibrating for proof of flow NEW!
0.5-135A range
N.O. 30VAC/DC output
Optional command relay

Energy Monitor
DESCRIPTION APPLICATIONS E474343
The AutoSet™ VFD self-calibrates to detect proof of flow on both variable ▪ Detecting belt loss, coupling shear, and
frequency driven and constant volume motors on fans or pumps. The mechanical failure on variable frequency
C-2350VFD automatically set the proper threshold, eliminating false drives and constant volume fans and
alarms associated with varying frequencies. Detects motor undercurrent pumps
conditions such as belt loss, coupling shear, and mechanical failure on
fans and pumps while reducing installation time.

FEATURES AND BENEFITS

Self-calibration for proof of flow on fans and pumps

▪ Works without time cpnsuming “training” of sensor— Save time and money by eliminating hazardous
simply operate motor once above 40 Hz calibration in energized enclosures
▪ No need to open hot starter enclosures—save on labor No hazardous guesswork.
as well as improve safety Multi-turn adjustments are a thing of
▪ Only VFD sensor capable of functioning on VFDs to 0.5A; the past; no time consuming “training!”
wrap conductor turns for the smallest of VFDs
▪ Sensor is always properly adjusted—no call backs
Reduce the risk of arc flash by
Split-core with optional command relay setting in advance and not c
▪ Easy installation and provides stop/start/status in a
unitary device—saves component and installation
space/cost
Maintenance-free—no call backs
▪ Superior to differential pressure sensors SET POINT OPERATION
▪ Industry leading 7 year limited warranty
Positive proof of flow for both VFD and
constand volume fans and pumps

PROUDLY MADE IN USA 7 year limited warranty
