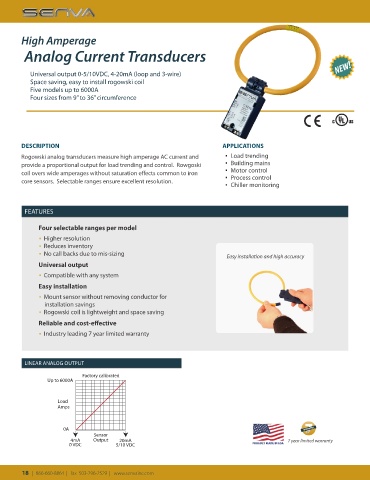

Page 18 - 2020 Catalog
P. 18
High Amperage
Analog Current Transducers
Universal output 0-5/10VDC, 4-20mA (loop and 3-wire) NEW!
Space saving, easy to install rogowski coil
Five models up to 6000A
Four sizes from 9” to 36” circumference
Energy Monitor
E474343
DESCRIPTION APPLICATIONS
Rogowski analog transducers measure high amperage AC current and ▪ Load trending
provide a proportional output for load trending and control. Rowgoski ▪ Building mains
coil overs wide amperages without saturation effects common to iron ▪ Motor control
core sensors. Selectable ranges ensure excellent resolution. ▪ Process control
▪ Chiller monitoring
FEATURES
Four selectable ranges per model
▪ Higher resolution
▪ Reduces inventory
▪ No call backs due to mis-sizing Easy installation and high accuracy
Universal output
▪ Compatible with any system
Easy installation
▪ Mount sensor without removing conductor for
installation savings
▪ Rogowski coil is lightweight and space saving
Reliable and cost-effective
▪ Industry leading 7 year limited warranty
LINEAR ANALOG OUTPUT
Factory calibrated
Up to 6000A
Load
Amps
0A
Sensor
4mA Output 20mA 7 year limited warranty
0 VDC 5/10 VDC PROUDLY MADE IN USA
