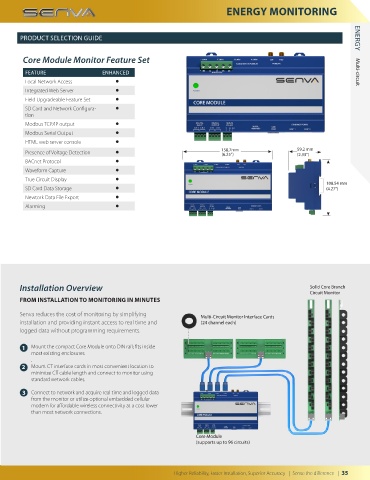

Page 35 - 2020 Catalog

ENERGY MONITORING

PRODUCT SELECTION GUIDE

Core Module Monitor Feature Set ENERGY Multi-circuit
FEATURE ENHANCED
Local Network Access l
Integrated Web Server l
Field Upgradeable Feature Set l
SD Card and Network Configura- l
tion
Modbus TCP/IP output l
Modbus Serial Output l
HTML web server console l
Presence of Voltage Detection l 158.7mm 59.2 mm
(2.33”)
(6.25”)
BACnet Protocol l
Waveform Capture l
True Circuit Display l
108.54 mm
SD Card Data Storage l (4.27”)
Newtork Data File Export l
Alarming l

Installation Overview Solid Core Branch
Circuit Monitor
FROM INSTALLATION TO MONITORING IN MINUTES

Senva reduces the cost of monitoring by simplifying Multi-Circuit Monitor Interface Cards
installation and providing instant access to real time and (24 channel each)
logged data without programming requirements.

1 Mount the compact Core Module onto DIN rail; fits inside
most existing enclosures
.
2 Mount CT interface cards in most convenient location to
minimize CT cable length and connect to monitor using
standard network cables.
3 Connect to network and acquire real time and logged data
from the monitor or utilize optional embedded cellular
modem for affordable wireless connectivity at a cost lower
than most network connections.

Core Module
(supports up to 96 circuits)
