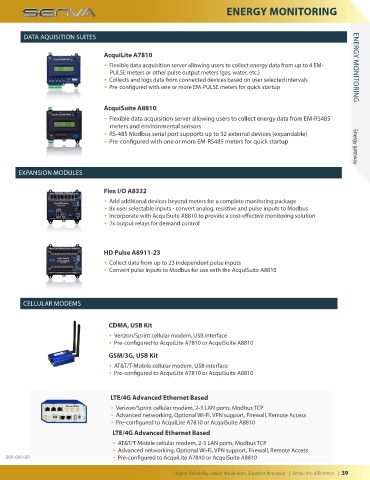

ENERGY MONITORING

DATA AQUISITION SUITES
Energy Meter and Data Logger
Supports Modbus, Analog and Pulse Devices AcquiLite A7810
BACnet/IP Server available ▪ Flexible data acquisition server allowing users to collect energy data from up to 4 EM-
Pre-configured Enclosure PULSE meters or other pulse output meters (gas, water, etc.) ENERGY MONITORING
Optional Cellular Modem ▪ Collects and logs data from connected devices based on user selected intervals
▪ Pre-configured with one or more EM-PULSE meters for quick startup

AcquiSuite A8810

▪ Flexible data acquisition server allowing users to collect energy data from EM-RS485
meters and environmental sensors
▪ RS-485 Modbus serial port supports up to 32 external devices (expandable)
▪ Pre-configured with one or more EM-RS485 meters for quick startup Energy gateway

EXPANSION MODULES

Flex I/O A8332

▪ Add additional devices beyond meters for a complete monitoring package
▪ 8x user selectable inputs - convert analog, resistive and pulse inputs to Modbus
▪ Incorporate with AcquiSuite A8810 to provide a cost-effective monitoring solution
▪ 2x output relays for demand control

HD Pulse A8911-23
▪ Collect data from up to 23 independent pulse inputs
▪ Convert pulse inputs to Modbus for use with the AcquiSuite A8810

CELLULAR MODEMS

CDMA, USB Kit
▪ Verizon/Sprint cellular modem, USB interface
▪ Pre-configured to AcquiLite A7810 or AcquiSuite A8810
GSM/3G, USB Kit

▪ AT&T/T-Mobile cellular modem, USB interface
▪ Pre-configured to AcquiLite A7810 or AcquiSuite A8810

LTE/4G Advanced Ethernet Based
▪ Verizon/Sprint cellular modem, 2-3 LAN ports, Modbus TCP
▪ Advanced networking, Optional Wi-Fi, VPN support, Firewall, Remote Access
▪ Pre-configured to AcquiLite A7810 or AcquiSuite A8810
LTE/4G Advanced Ethernet Based

▪ AT&T/T-Mobile cellular modem, 2-3 LAN ports, Modbus TCP
2 | emote Access
▪ Advanced networking, Optional Wi-Fi, VPN support, Firewall, R
866-660-8864 | fax 503-296-2529 | www.senvainc.com
▪ Pre-configured to AcquiLite A7810 or AcquiSuite A8810
Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 39
