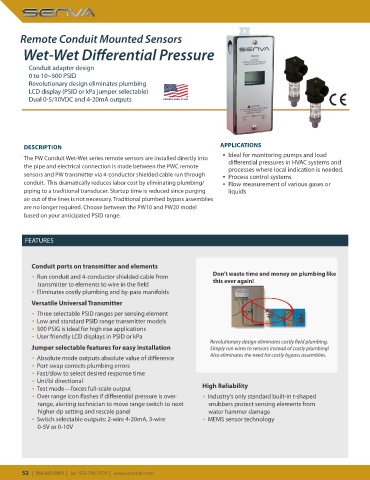

Page 52 - 2020 Catalog

Remote Conduit Mounted Sensors

Wet-Wet Differential Pressure

Conduit adapter design
0 to 10~500 PSID
Revolutionary design eliminates plumbing
LCD display (PSID or kPa jumper selectable)
Dual 0-5/10VDC and 4-20mA outputs PROUDLY MADE IN USA

DESCRIPTION APPLICATIONS
▪ Ideal for monitoring pumps and load
The PW Conduit Wet-Wet series remote sensors are installed directly into differential pressures in HVAC systems and
the pipe and electrical connection is made between the PWC remote processes where local indication is needed.
sensors and PW transmitter via 4-conductor shielded cable run through ▪ Process control systems
conduit. This dramatically reduces labor cost by eliminating plumbing/ ▪ Flow measurement of various gases or
piping to a traditional transducer. Startup time is reduced since purging liquids
air out of the lines is not necessary. Traditional plumbed bypass assemblies
are no longer required. Choose between the PW10 and PW20 model
based on your anticipated PSID range.

FEATURES

Conduit ports on transmitter and elements
▪ Run conduit and 4-conductor shielded cable from Don’t waste time and money on plumbing like
transmitter to elements to wire in the field this ever again!
▪ Eliminates costly plumbing and by-pass manifolds

Versatile Universal Transmitter
▪ Three selectable PSID ranges per sensing element
▪ Low and standard PSID range transmitter models
▪ 500 PSIG is ideal for high rise applications
▪ User friendly LCD displays in PSID or kPa
Revolutionary design eliminates costly field plumbing.
Jumper selectable features for easy installation Simply run wires to sensors instead of costly plumbing!
▪ Absolute mode outputs absolute value of difference Also eliminates the need for costly bypass assemblies.
▪ Port swap corrects plumbing errors
▪ Fast/slow to select desired response time
▪ Uni/bi directional
▪ Test mode—forces full-scale output High Reliability
▪ Over range icon flashes if differential pressure is over- ▪ Industry’s only standard built-in t-shaped
range, alerting technician to move range switch to next snubbers protect sensing elements from
higher dp setting and rescale panel water hammer damage
▪ Switch selectable outputs: 2-wire 4-20mA, 3-wire ▪ MEMS sensor technology
0-5V or 0-10V
