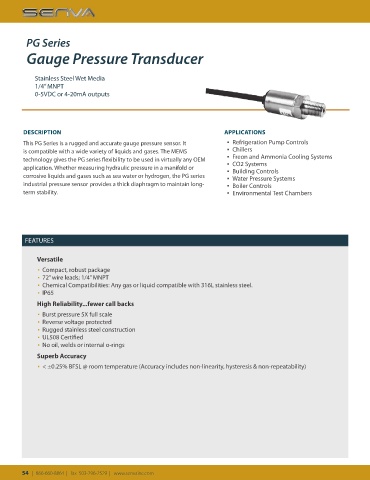

P. 54
PG Series
Gauge Pressure Transducer
Stainless Steel Wet Media
1/4” MNPT
0-5VDC or 4-20mA outputs
DESCRIPTION APPLICATIONS
This PG Series is a rugged and accurate gauge pressure sensor. It ▪ Refrigeration Pump Controls
is compatible with a wide variety of liquids and gases. The MEMS ▪ Chillers
technology gives the PG series flexibility to be used in virtually any OEM ▪ Freon and Ammonia Cooling Systems
application. Whether measuring hydraulic pressure in a manifold or ▪ CO2 Systems
▪ Building Controls
corrosive liquids and gases such as sea water or hydrogen, the PG series ▪ Water Pressure Systems
industrial pressure sensor provides a thick diaphragm to maintain long- ▪ Boiler Controls
term stability. ▪ Environmental Test Chambers
FEATURES
Versatile
▪ Compact, robust package
▪ 72” wire leads; 1/4” MNPT
▪ Chemical Compatibilities: Any gas or liquid compatible with 316L stainless steel.
▪ IP65
High Reliability...fewer call backs
▪ Burst pressure 5X full scale
▪ Reverse voltage protected
▪ Rugged stainless steel construction
▪ UL508 Certified
▪ No oil, welds or internal o-rings
Superb Accuracy
▪ < ±0.25% BFSL @ room temperature (Accuracy includes non-linearity, hysteresis & non-repeatability)
