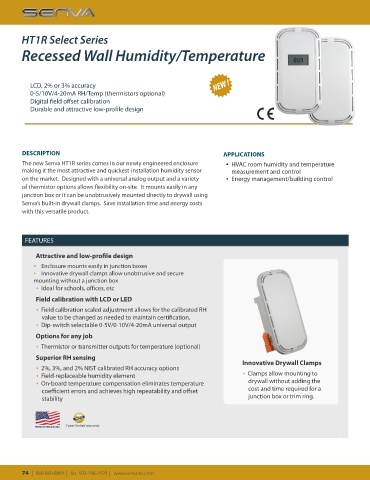

Page 74 - 2020 Catalog

HT1R Select Series
Recessed Wall Humidity/Temperature

LCD, 2% or 3% accuracy NEW !
0-5/10V/4-20mA RH/Temp (thermistors optional)
Digital field offset calibration
Durable and attractive low-profile design

DESCRIPTION APPLICATIONS
The new Senva HT1R series comes in our newly engineered enclosure ▪ HVAC room humidity and temperature
making it the most attractive and quickest-installation humidity sensor measurement and control
on the market. Designed with a universal analog output and a variety ▪ Energy management/building control
of thermistor options allows flexibility on-site. It mounts easily in any
junction box or it can be unobtrusively mounted directly to drywall using
Senva’s built-in drywall clamps. Save installation time and energy costs
with this versatile product.

FEATURES

Attractive and low-profile design
▪ Enclosure mounts easily in junction boxes
▪ Innovative drywall clamps allow unobtrusive and secure
mounting without a junction box
▪ Ideal for schools, offices, etc
Field calibration with LCD or LED
▪ Field calibration scaled adjustment allows for the calibrated RH
value to be changed as needed to maintain certification.
▪ Dip-switch selectable 0-5V/0-10V/4-20mA universal output
Options for any job

▪ Thermistor or transmitter outputs for temperature (optional)
Superior RH sensing
Innovative Drywall Clamps
▪ 2%, 3%, and 2% NIST calibrated RH accuracy options
▪ Field-replaceable humidity element ▪ Clamps allow mounting to
▪ On-board temperature compensation eliminates temperature drywall without adding the
coefficient errors and achieves high repeatability and offset cost and time required for a
stability junction box or trim ring.

7 year limited warranty
PROUDLY MADE IN USA

74 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
