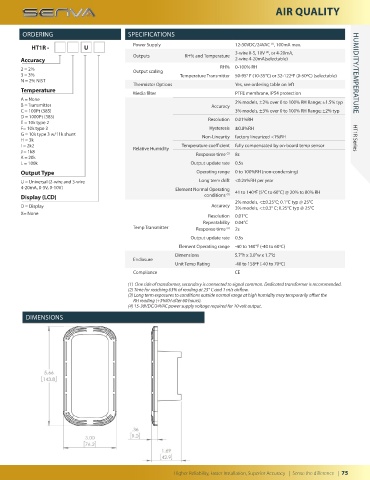

Page 75 - 2020 Catalog

AIR QUALITY

ORDERING
ORDERING SPECIFICATIONS
(1)
HT1R - U Power Supply 12-30VDC/24VAC , 100mA max.
3-wire 0-5, 10V , or 4-20mA,
(4)
Accuracy Outputs RH% and Temperature 2-wire 4-20mA(selectable)
2 = 2% Output scaling RH% 0-100% RH
3 = 3% Temperature Transmitter 50-95° F (10-35°C) or 32-122oF (0-50oC) (selectable) HUMIDITY/TEMPERATURE
N = 2% NIST
Thermistor Options Yes, see ordering table on left
Temperature
Media filter PTFE membrane, IP54 protection
A = None
B = Transmitter Accuracy 2% models, ±2% over 0 to 100% RH Range; ±1.5% typ
C = 100Pt (385) 3% models, ±3% over 0 to 100% RH Range; ±2% typ
D = 1000Pt (385) Resolution 0.01%RH
E = 10k type 2
F= 10k type 3 Hysteresis ±0.8%RH
G = 10k type 3 w/11k shunt Non-Linearity factory linearized <1%RH
H = 3k HT1R Series
I = 2k2 Relative Humidity Temperature coefficient fully compensated by on-board temp sensor
J = 1k8 Response time (2) 8s
K = 20k
L = 100k Output update rate 0.5s
Output Type Operating range 0 to 100%RH (non-condensing)
U = Universal (2-wire and 3-wire Long term drift <0.25%RH per year
4-20mA, 0-5V, 0-10V) Element Normal Operating 41 to 140ºF (5°C to 60°C) @ 20% to 80% RH
Display (LCD) conditions (3)
D = Display Accuracy 2% models, <±0.25°C; 0.1°C typ @ 25°C
3% models, <±0.3° C; 0.25°C typ @ 25°C
X= None Resolution 0.01°C
Repeatability 0.04°C
Temp Transmitter Response time (2) 2s
Output update rate 0.5s
Element Operating range -40 to 140°F (-40 to 60oC)
Dimensions 5.7”h x 3.0”w x 1.7”d
Enclosure
Unit Temp Rating -40 to 158oF (-40 to 70oC)
Compliance CE
(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended.
(2) Time for reaching 63% of reading at 25° C and 1 m/s airflow.
(3) Long term exposures to conditions outside normal range at high humidity may temporarily offset the
RH reading (+3%RH after 60 hours).
(4) 15-30VDC/24VAC power supply voltage required for 10 volt output.

DIMENSIONS
