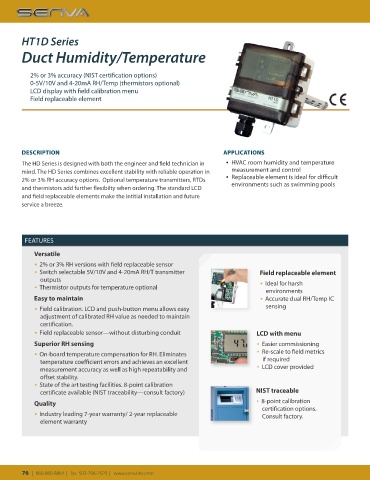

Page 76 - 2020 Catalog

HT1D Series

Duct Humidity/Temperature

2% or 3% accuracy (NIST certification options)
0-5V/10V and 4-20mA RH/Temp (thermistors optional)
LCD display with field calibration menu
Field replaceable element

DESCRIPTION APPLICATIONS
The HD Series is designed with both the engineer and field technician in ▪ HVAC room humidity and temperature
mind. The HD Series combines excellent stability with reliable operation in measurement and control
2% or 3% RH accuracy options. Optional temperature transmitters, RTDs ▪ Replaceable element is ideal for difficult
and thermistors add further flexibilty when ordering. The standard LCD environments such as swimming pools
and field replaceable elements make the intitial installation and future
service a breeze.

FEATURES
FEA TURES
Versatile
▪ 2% or 3% RH versions with field replaceable sensor
▪ Switch selectable 5V/10V and 4-20mA RH/T transmitter Field replaceable element
outputs
▪ Thermistor outputs for temperature optional ▪ Ideal for harsh
environments
Easy to maintain ▪ Accurate dual RH/Temp IC
▪ Field calibration. LCD and push-button menu allows easy sensing
adjustment of calibrated RH value as needed to maintain
certification.
▪ Field replaceable sensor—without disturbing conduit LCD with menu
Superior RH sensing ▪ Easier commissioning
▪ On-board temperature compensation for RH. Eliminates ▪ Re-scale to field metrics
temperature coefficient errors and achieves an excellent if required
measurement accuracy as well as high repeatability and ▪ LCD cover provided
offset stability.
▪ State of the art testing facilities. 8-point calibration
certificate available (NIST traceability—consult factory) NIST traceable
Quality ▪ 8-point calibration
certification options.
▪ Industry leading 7-year warranty/ 2-year replaceable Consult factory.
element warranty
