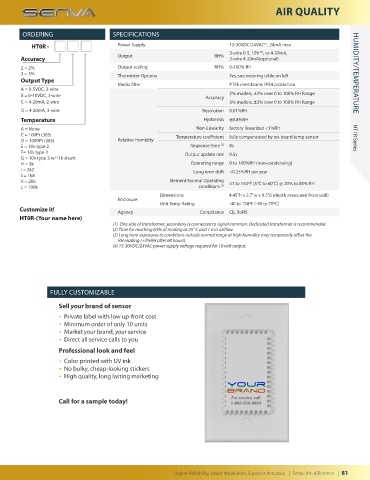

Page 81 - 2020 Catalog

AIR QUALITY

ORDERING SPECIFICATIONS
ORDERING
(1)
HT0R - Power Supply 12-30VDC/24VAC , 24mA max
3-wire 0-5, 10V , or 4-20mA,
(4)
Accuracy Output RH% 2-wire 4-20mA(optional)
2 = 2% Output scaling RH% 0-100% RH
3 = 3% Thermistor Options Yes, see ordering table on left HUMIDITY/TEMPERATURE
Output Type
Media filter PTFE membrane, IP54 protection
A = 0-5VDC, 3-wire
B = 0-10VDC, 3-wire Accuracy 2% models, ±2% over 0 to 100% RH Range
C = 4-20mA, 2-wire 3% models, ±3% over 0 to 100% RH Range
D = 4-20mA, 3-wire Resolution 0.01%RH
Temperature Hysteresis ±0.8%RH
A = None Non-Linearity factory linearized <1%RH
C = 100Pt (385) Temperature coefficient fully compensated by on-board temp sensor
D = 1000Pt (385) Relative Humidity HT1R Series
E = 10k type 2 Response time (2) 8s
F= 10k type 3 Output update rate 0.5s
G = 10k type 3 w/11k shunt
H = 3k Operating range 0 to 100%RH (non-condensing)
I = 2k2 Long term drift <0.25%RH per year
J = 1k8
K = 20k Element Normal Operating 41 to 140ºF (5°C to 60°C) @ 20% to 80% RH
L = 100k conditions (3)
Dimensions 4.45”h x 2.7”w x 0.5”d (depth measured from wall)
Enclosure
Unit Temp Rating -40 to 158oF (-40 to 70oC)
Customize it! Agency Compliance CE, RoHS
HT0R-(Your name here)
(1) One side of transformer, secondary is connected to signal common. Dedicated transformer is recommended.
(2) Time for reaching 63% of reading at 25° C and 1 m/s airflow.
(3) Long term exposures to conditions outside normal range at high humidity may temporarily offset the
RH reading (+3%RH after 60 hours).
(4) 15-30VDC/24VAC power supply voltage required for 10 volt output.

FULLY CUSTOMIZABLE

Sell your brand of sensor
▪ Private label with low up-front cost
▪ Minimum order of only 10 units
▪ Market your brand, your service
▪ Direct all service calls to you
Professional look and feel

▪ Color printed with UV ink
▪ No bulky, cheap-looking stickers
▪ High quality, long lasting marketing

Call for a sample today!
