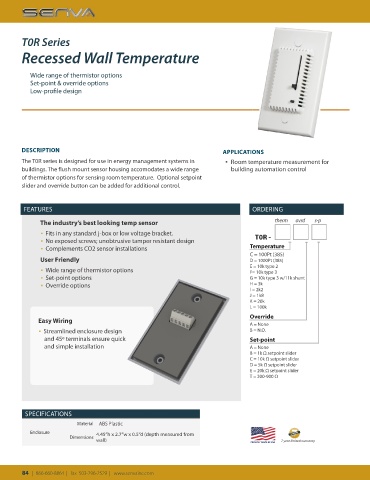

Page 84 - 2020 Catalog

T0R Series

Recessed Wall Temperature

Wide range of thermistor options
Set-point & override options
Low-profile design

DESCRIPTION APPLICATIONS
The T0R series is designed for use in energy management systems in ▪ Room temperature measurement for
buildings. The flush mount sensor housing accomodates a wide range building automation control
of thermistor options for sensing room temperature. Optional setpoint
slider and override button can be added for additional control.

FEATURES ORDERING

The industry’s best looking temp sensor therm ovrd s-p
▪ Fits in any standard j-box or low voltage bracket. T0R -

▪ No exposed screws; unobtrusive tamper resistant design
▪ Complements CO2 sensor installations Temperature
C = 100Pt (385)
User Friendly D = 1000Pt (385)
E = 10k type 2
▪ Wide range of thermistor options F= 10k type 3
▪ Set-point options G = 10k type 3 w/11k shunt
▪ Override options H = 3k
I = 2k2
J = 1k8
K = 20k
L = 100k
Override
Easy Wiring
A = None
▪ Streamlined enclosure design B = N.O.
and 45o terminals ensure quick Set-point
and simple installation A = None
B = 1k Ω setpoint slider
C = 10k Ω setpoint slider
D = 5k Ω setpoint slider
E = 20k Ω setpoint slider
T = 200-900 Ω

SPECIFICATIONS

Material ABS Plastic
Enclosure 4.45”h x 2.7”w x 0.5”d (depth measured from
Dimensions
wall) PROUDLY MADE IN USA 7 year limited warranty
