AIR QUALITY

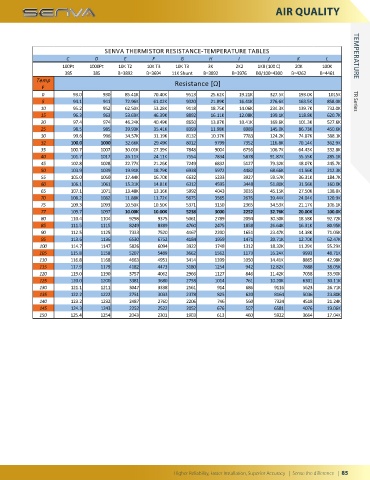

SENVA THERMISTOR RESISTANCE-TEMPERATURE TABLES
C D E F G H I J K L
100Pt 1000Pt 10K T2 10K T3 10K T3 3K 2K2 1K8 (100 C) 20K 100K
385 385 B=3892 B=3694 11K Shunt B=3892 B=3976 B0/100=4300 B=4262 B=4461 TEMPERATURE TR Series
Temp Resistance [Ω]
F
0 93.0 930 85.41K 70.40K 9513 25.62K 19.21K 327.5K 193.0K 1015K
5 94.1 941 72.96K 61.02K 9320 21.89K 16.41K 276.6K 163.5K 858.0K
10 95.2 952 62.50K 53.28K 9118 18.75K 14.06K 234.3K 139.7K 732.0K
15 96.3 963 53.69K 46.39K 8892 16.11K 12.08K 199.1K 118.8K 620.7K
20 97.4 974 46.24K 40.49K 8650 13.87K 10.41K 169.6K 101.3K 527.6K
25 98.5 985 39.93K 35.41K 8393 11.98K 8989 145.0K 86.73K 450.6K
30 99.6 996 34.57K 31.19K 8132 10.37K 7783 124.2K 74.87K 388.1K
32 100.0 1000 32.66K 29.49K 8012 9799 7352 116.8K 70.14K 362.9K
35 100.7 1007 30.01K 27.39K 7848 9004 6756 106.7K 64.43K 332.8K
40 101.7 1017 26.11K 24.11K 7554 7834 5878 91.87K 55.55K 285.1K
45 102.8 1028 22.77K 21.26K 7249 6832 5127 79.32K 48.07K 245.7K
50 103.9 1039 19.91K 18.79K 6938 5972 4482 68.66K 41.56K 212.3K
55 105.0 1050 17.44K 16.70K 6632 5233 3927 59.57K 36.31K 184.7K
60 106.1 1061 15.31K 14.81K 6312 4595 3448 51.80K 31.56K 160.0K
65 107.1 1071 13.48K 13.16K 5992 4043 3035 45.15K 27.50K 138.8K
70 108.2 1082 11.88K 11.72K 5675 3565 2676 39.44K 24.04K 120.9K
75 109.3 1093 10.50K 10.50K 5371 3150 2365 34.53K 21.17K 106.1K
77 109.7 1097 10.00K 10.00K 5238 3000 2252 32.76K 20.00K 100.0K
80 110.4 1104 9298 9375 5061 2789 2094 30.30K 18.58K 92.72K
85 111.5 1115 8249 8389 4760 2475 1858 26.64K 16.31K 80.95K
90 112.5 1125 7333 7520 4467 2200 1651 23.47K 14.38K 71.05K
95 113.6 1136 6530 6752 4184 1959 1471 20.71K 12.70K 62.47K
100 114.7 1147 5826 6094 3922 1748 1312 18.32K 11.29K 55.29K
105 115.8 1158 5207 5489 3662 1562 1173 16.24K 9993 48.71K
110 116.8 1168 4663 4951 3414 1399 1050 14.41K 8865 42.98K
115 117.9 1179 4182 4473 3180 1254 942 12.82K 7888 38.05K
120 119.0 1190 3757 4062 2966 1127 846 11.42K 7058 33.90K
125 120.0 1200 3381 3680 2758 1014 761 10.20K 6301 30.11K
130 121.1 1211 3047 3338 2561 914 686 9116 5623 26.71K
135 122.2 1222 2751 3033 2378 825 620 8164 5036 23.80K
140 123.2 1232 2487 2760 2206 746 560 7324 4518 21.24K
145 124.3 1243 2252 2522 2052 676 507 6581 4076 19.06K
150 125.4 1254 2043 2301 1903 613 460 5922 3664 17.04K
