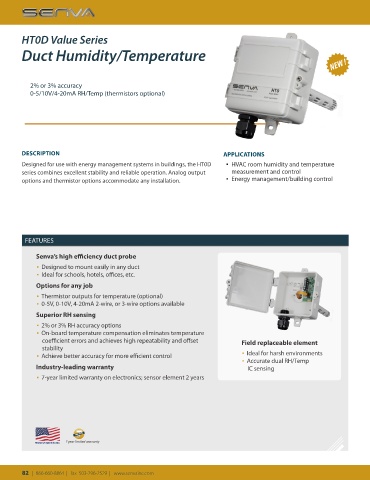

Page 82 - 2020 Catalog
P. 82
HT0D Value Series
Duct Humidity/Temperature
NEW !
2% or 3% accuracy
0-5/10V/4-20mA RH/Temp (thermistors optional)
DESCRIPTION APPLICATIONS
Designed for use with energy management systems in buildings, the HT0D ▪ HVAC room humidity and temperature
series combines excellent stability and reliable operation. Analog output measurement and control
options and thermistor options accommodate any installation. ▪ Energy management/building control
FEATURES
Senva’s high efficiency duct probe
▪ Designed to mount easily in any duct
▪ Ideal for schools, hotels, offices, etc.
Options for any job
▪ Thermistor outputs for temperature (optional)
▪ 0-5V, 0-10V, 4-20mA 2-wire, or 3-wire options available
Superior RH sensing
▪ 2% or 3% RH accuracy options
▪ On-board temperature compensation eliminates temperature
coefficient errors and achieves high repeatability and offset Field replaceable element
stability
▪ Achieve better accuracy for more efficient control ▪ Ideal for harsh environments
▪ Accurate dual RH/Temp
Industry-leading warranty IC sensing
▪ 7-year limited warranty on electronics; sensor element 2 years
PROUDLY MADE IN USA 7 year limited warranty
82 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
