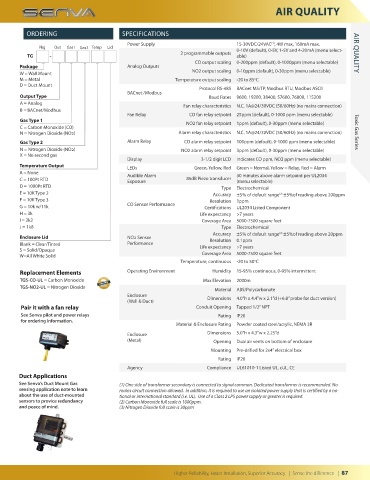

Page 87 - 2020 Catalog

AIR QUALITY

ORDERING SPECIFICATIONS
Power Supply 15-30VDC/24VAC , 4W max, 160mA max.
(1)
Pkg Out Gas1 Gas2 Temp Lid 0-10V (default), 0-5V, 1-5V and 4-20mA (menu select-
2 programmable outputs
TG - able) AIR QUALITY
CO output scaling 0-200ppm (default), 0-1000ppm (menu selectable)
Package Analog Outputs
W = Wall Mount NO2 output scaling 0-10ppm (default), 0-30ppm (menu selectable)
M = Metal Temperature output scaling -20 to 85 C
o
D = Duct Mount Protocol RS-485 BACnet MS/TP, Modbus RTU, Modbus ASCII
BACnet /Modbus
Output Type Baud Rates 9600, 19200, 38400, 57600, 76800, 115200
A = Analog Fan relay characteristics N.C. 1A@24/30VDC (50/60Hz) (no mains connection)
B = BACnet/Modbus
Fan Relay CO fan relay setpoint 25ppm (default), 0-1000 ppm (menu selectable)
Gas Type 1 NO2 fan relay setpoint 1ppm (default), 0-30ppm (menu selectable)
C = Carbon Monoxide (CO)
N = Nitrogen Dioxide (NO2) Alarm relay characteristics N.C. 1A@24/30VDC (50/60Hz) (no mains conenction) Toxic Gas Series
Gas Type 2 Alarm Relay CO alarm relay setpoint 100ppm (default), 0-1000 ppm (menu selectable)
N = Nitrogen Dioxide (NO2) NO2 alarm relay setpoint 3ppm (default), 0-30ppm (menu selectable)
X = No second gas
Display 3-1/2 digit LCD Indicates CO ppm, NO2 ppm (menu selectable)
Temperature Output LEDs Green, Yellow, Red Green = Normal, Yellow = Relay, Red = Alarm
A = None Audible Alarm 30 minutes above alarm setpoint per UL2034
C = 100Pt RTD Exposure 85dB Piezo transducer (menu selectable)
D = 1000Pt RTD Type Electrochemical
E = 10K Type 2 Accuracy ±5% of default range ±5%of reading above 200ppm
(2)
F = 10K Type 3 Resolution 1ppm
G = 10k w/11k CO Sensor Performance Certifications UL2034 Listed Component
H = 3k Life expectancy >7 years
I = 2k2 Coverage Area 5000-7500 square feet
J = 1k8 Type Electrochemical
Accuracy ±5% of default range ±5%of reading above 20ppm
(3)
Enclosure Lid NO2 Sensor Resolution 0.1ppm
Blank = Clear/Tinted Performance Life expectancy >7 years
S = Solid/Opaque
W=All White Solid Coverage Area 5000-7500 square feet
Temperature, continuous -20 to 50 C
o
Replacement Elements Operating Environment Humidity 15-95% continuous, 0-95% intermittent
TGS-CO-UL = Carbon Monoxide Max Elevation 2000m
TGS-NO2-UL = Nitrogen Dioxide
Material ABS/Polycarbonate
warranty Enclosure
(Wall & Duct) Dimensions 4.0”h x 4.4”w x 2.1”d (+6.8” probe for duct version)
Pair it with a fan relay Conduit Opening Tapped 1/2” NPT
See Senva pilot and power relays Rating IP20
for ordering information.
Material & Enclosure Rating Powder coated steel/acrylic, NEMA 3R
Enclosure Dimensions 5.0”h x 4.3”w x 2.25”d
(Metal) Opening Dual air vents on bottom of enclosure
Mounting Pre-drilled for 2x4” electrical box
Rating IP20
Agency Compliance UL61010-1 Listed UL, cUL, CE
Duct Applications
See Senva’s Duct Mount Gas (1) One side of transformer secondary is connected to signal common. Dedicated transformer is recommended. No
sensing application note to learn mains circuit connection allowed. In addition, it is required to use an isolated power supply that is certified by a na-
about the use of duct-mounted tional or international standard (i.e. UL). Use of a Class 2 LPS power supply or greater is required.
sensors to provice redundancy (2) Carbon Monoxide full scale is 1000ppm.
and peace of mind. (3) Nitrogen Dioxide full scale is 30ppm

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 87
