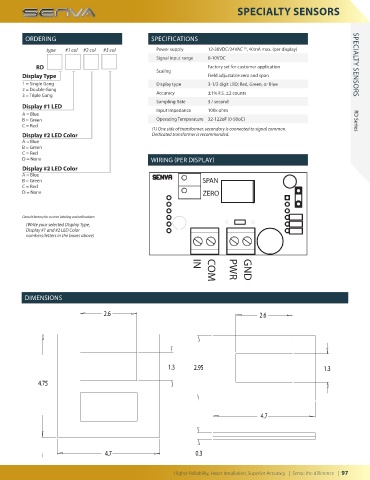

Page 97 - 2020 Catalog

SPECIALTY SENSORS

ORDERING SPECIFICATIONS

(1)
type #1 col #2 col #3 col Power supply 12-30VDC/24VAC , 40mA max. (per display)
Signal input range 0-10VDC
RD Scaling Factory set for customer application SPECIALTY SENSORS
Display Type Field adjustable zero and span
1 = Single Gang Display type 3-1/2 digit LED; Red, Green, or Blue
2 = Double Gang
3 = Triple Gang Accuracy ±1% F.S. ±2 counts
Sampling Rate 3 / second
Display #1 LED
A = Blue Input Impedance 100k ohm
B = Green Operating Temperature 32-122oF (0-50oC) RD Series
C = Red
(1) One side of transformer, secondary is connected to signal common.
Display #2 LED Color Dedicated transformer is recommended.
A = Blue
B = Green
C = Red
D = None WIRING (PER DISPLAY)
Display #2 LED Color
A = Blue
B = Green SPAN
C = Red
D = None ZERO

Consult factory for custom labeling and calibrations
(Write your selected Display Type,
Display #1 and #2 LED Color
numbers/letters in the boxes above) IN

DIMENSIONS COM PWR GND

2.6 2.6

1.3 2.95 1.3

4.75

4.7

4.7 0.3

Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 97

0.3
