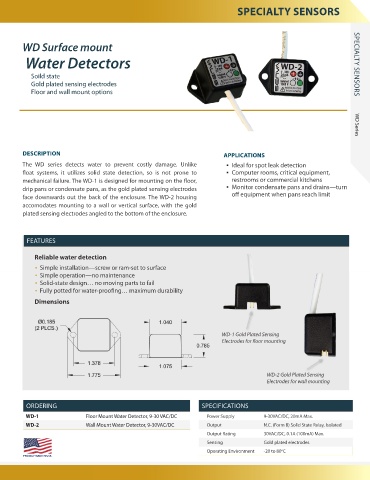

Page 95 - 2020 Catalog

SPECIALTY SENSORS

WD Surface mount

Water Detectors SPECIALTY SENSORS

Soild state
Gold plated sensing electrodes
Floor and wall mount options

DESCRIPTION APPLICATIONS WD Series
The WD series detects water to prevent costly damage. Unlike ▪ Ideal for spot leak detection
float systems, it utilizes solid state detection, so is not prone to ▪ Computer rooms, critical equipment,
mechanical failure. The WD-1 is designed for mounting on the floor, restrooms or commercial kitchens
drip pans or condensate pans, as the gold plated sensing electrodes ▪ Monitor condensate pans and drains—turn
face downwards out the back of the enclosure. The WD-2 housing off equipment when pans reach limit
accomodates mounting to a wall or vertical surface, with the gold
plated sensing electrodes angled to the bottom of the enclosure.

FEATURES

Reliable water detection
▪ Simple installation—screw or ram-set to surface
▪ Simple operation—no maintenance
▪ Solid-state design… no moving parts to fail
▪ Fully potted for water-proofing… maximum durability
Dimensions

WD-1 Gold Plated Sensing
Electrodes for floor mounting

WD-2 Gold Plated Sensing
Electrodes for wall mounting

ORDERING SPECIFICATIONS
WD-1 Floor Mount Water Detector, 9-30 VAC/DC Power Supply 9-30VAC/DC, 20mA Max.
WD-2 Wall Mount Water Detector, 9-30VAC/DC Output N.C. (Form B) Solid State Relay, Isolated
Output Rating 30VAC/DC, 0.1A (100mA) Max.
Sensing Gold plated electrodes
Operating Environment -20 to 80 C
o
PROUDLY MADE IN USA
Higher Reliability, Faster Installation, Superior Accuracy | Sense the difference | 95
