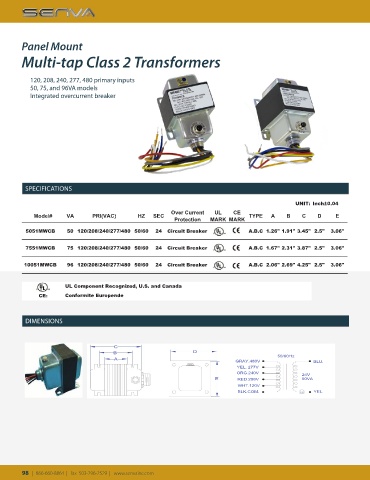

Page 98 - 2020 Catalog

Panel Mount

Multi-tap Class 2 Transformers

CERUS
CLASS II TRANSFORMERS
120, 208, 240, 277, 480 primary inputs
50, 75, and 96VA models
Integrated overcurrent breaker

C
B D 50/60Hz
A
GRAY.480V BLU.
YEL. 277V
ORG.240V 24V
E RED.208V 50VA
WHT.120V
BLK.COM. C.B YEL.

SPECIFICATIONS

UNIT: Inch±0.04
Over Current UL CE
Model# VA PRI(VAC) HZ SEC TYPE A B C D E
Protection MARK MARK
5051MWCB 50 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 1.26" 1.91" 3.45" 2.5" 3.06"

7551MWCB 75 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 1.67" 2.31" 3.87" 2.5" 3.06"

10051MWCB 96 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 2.06" 2.69" 4.25" 2.5" 3.06"

UL Component Recognized, U.S. and Canada
CE: Conformite Europende

CERUS CLASS II TRANSFORMERS
DIMENSIONS

C
B D
A GRAY.480V 50/60Hz BLU.
YEL. 277V
ORG.240V 24V
E RED.208V 50VA
WHT.120V
BLK.COM. C.B YEL.

UNIT: Inch±0.04
Over Current UL CE
Model# VA PRI(VAC) HZ SEC TYPE A B C D E
Protection MARK MARK
5051MWCB 50 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 1.26" 1.91" 3.45" 2.5" 3.06"
98 | 866-660-8864 | fax 503-296-2529 | www.senvainc.com
7551MWCB 75 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 1.67" 2.31" 3.87" 2.5" 3.06"

10051MWCB 96 120/208/240/277/480 50/60 24 Circuit Breaker A.B.C 2.06" 2.69" 4.25" 2.5" 3.06"

UL Component Recognized, U.S. and Canada
CE: Conformite Europende
