Metering Series

Split-Core Current Transducers
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Metering Split-Core CTs

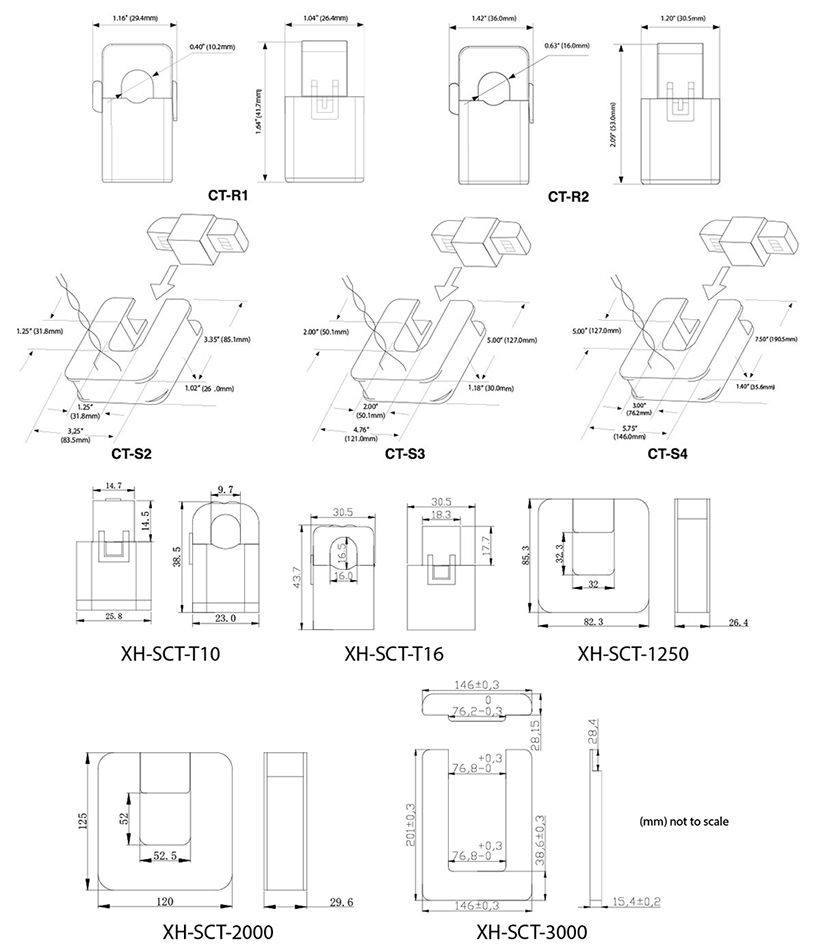

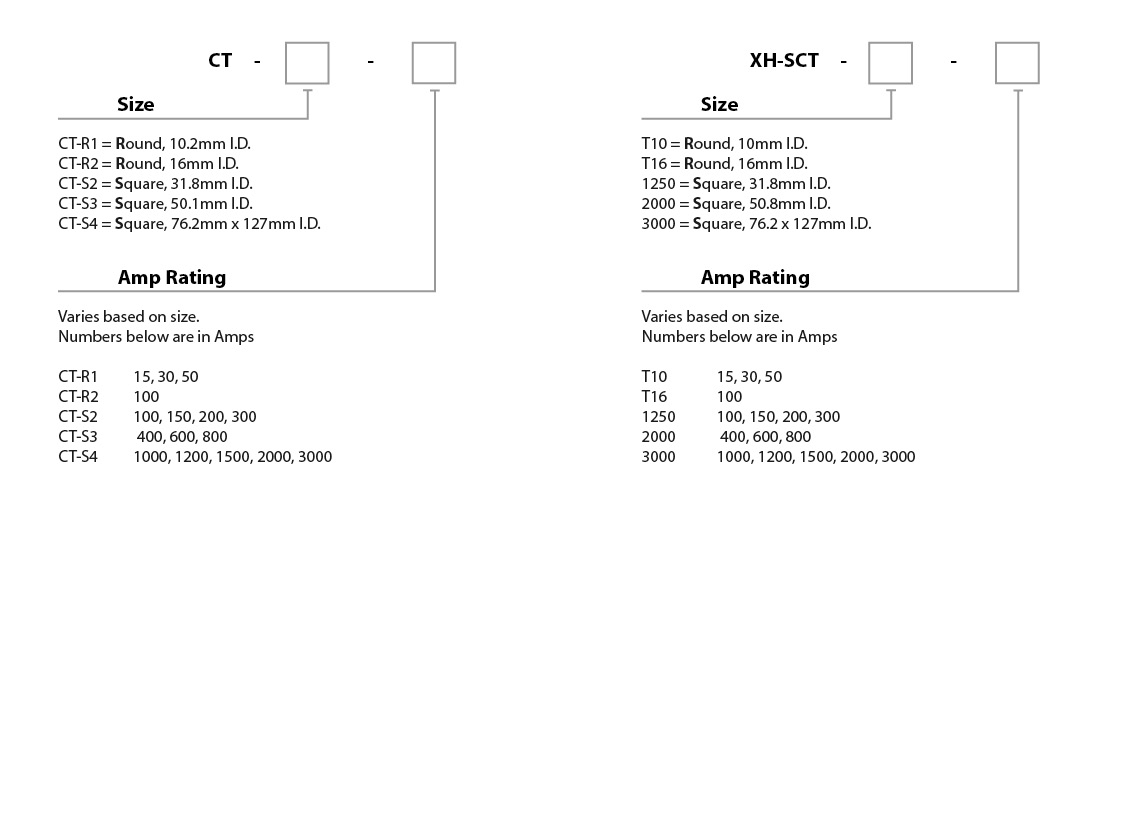

Choose from 5 aperture sizes Each outputs 0.333V (333mV) at rated current Sense loads 15-3000A CT’s come in a range of inner diameter sizes and amperages

CT Series: IEC 61869-2 Class 0.5s Accuracy
XH-SCT Series: 1% accuracy (Discontinuing once stock is out)
For use with Senva's EMX and Branch Multi-Circuit Meter

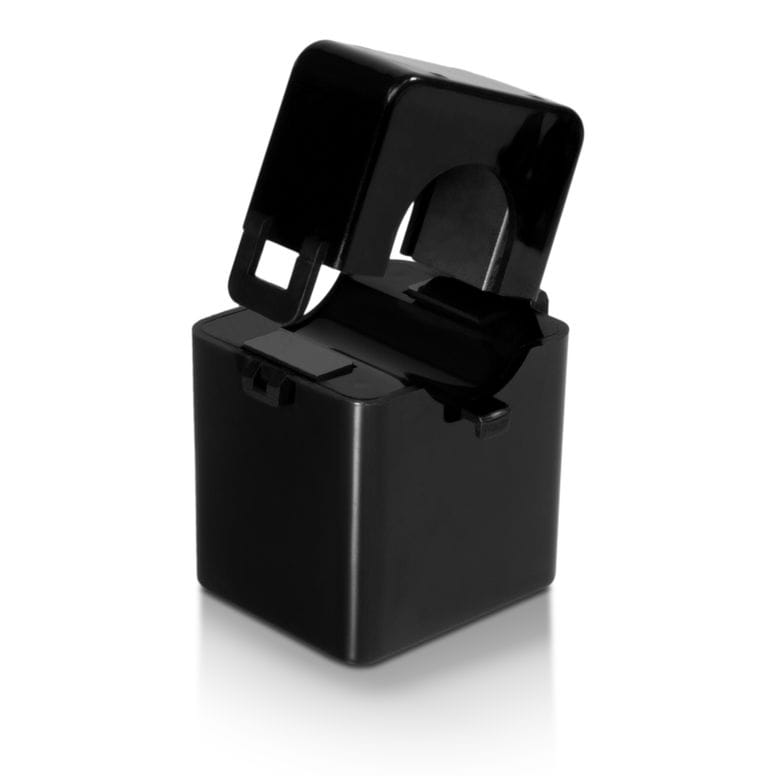

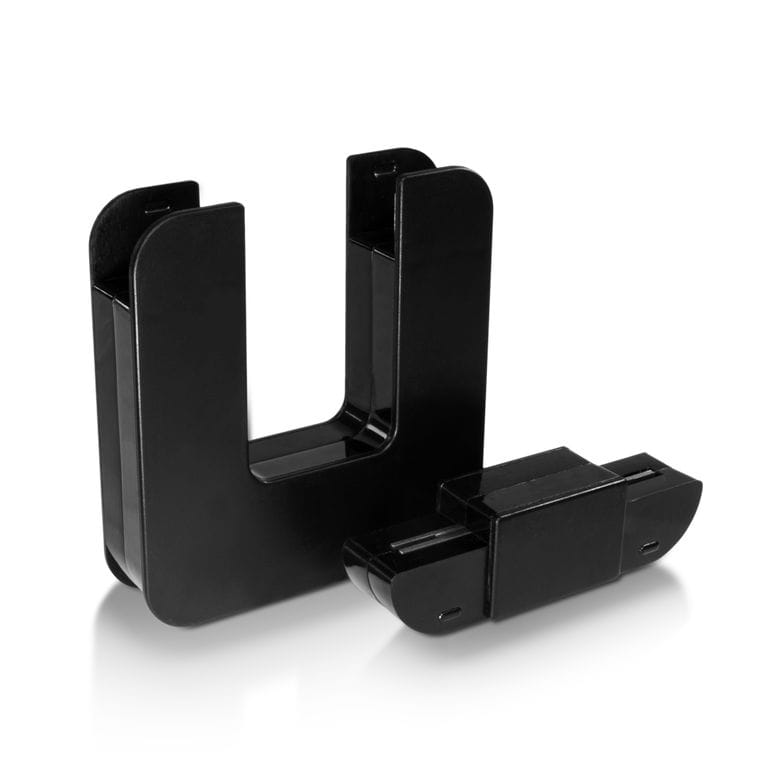

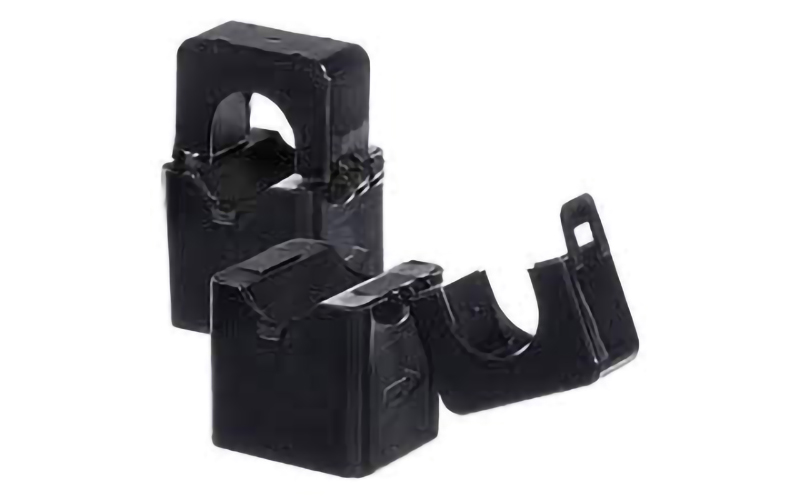

Split-core Sensors for easy installation or retrofits
Monitor loads from 15-3000A

  • Choose from 5 aperture sizes
  • Linear output 0.333V (333mV) at rated current
  • Sense loads 15-3000A
  • Use with any standard meter or data logger
  • High accuracy - Class 0.5s
  • UL recognized Instrument Transformer, CE, and RoHS compliant

Description

The Senva Metering Series CTs provide a high-accuracy linear 0V to 0.333VAC signal output proportional to the measured current. These can be safely and simply installed for use with most power meters, data loggers, and other instruments. Our Split-core Metering CTs come in a range of inner diameter sizes and amperages to accommodate a wide variety of installations and retro-fits.

Applications

  • Energy management and performance contracting
  • Monitoring for commercial tenants
  • Activity-based costing in commercial and industrial facilities
  • Real-time power monitoring
  • Load shedding
  • Audits/temporary monitoring
  • Distributed generation
  • Great for data center energy power sensing



Product Price Quantity
CT-R1-15 15A 0.333V Round Metering Split Core CT, 10.2mm I.D.
$146.10 /

EA
CT-R1-30 30A 0.333V Round Metering Split Core CT, 10.2mm I.D.
$146.10 /

EA
CT-R1-50 50A 0.333V Round Metering Split Core CT, 10.2mm I.D.
$146.10 /

EA
CT-R2-100 100A 0.333V Round Metering Split Core CT, 16mm I.D.
$156.10 /

EA
CT-S2-100 100A 0.333V Square Metering Split Core CT, 31.8mm I.D.
$166.95 /

EA
CT-S2-150 150A 0.333V Square Metering Split Core CT, 31.8mm I.D.
$166.95 /

EA
CT-S2-200 200A 0.333V Square Metering Split Core CT, 31.8mm I.D.
$166.95 /

EA
CT-S2-300 300A 0.333V Square Metering Split Core CT, 31.8mm I.D.
$166.95 /

EA
CT-S3-400 400A 0.333V Square Metering Split Core CT, 50.1mm I.D.
$250.43 /

EA
CT-S3-600 600A 0.333V Square Metering Split Core CT, 50.1mm I.D.
$250.43 /

EA

All prices shown are excluding tax unless otherwise specified.
