Branch Series

Multi-Circuit (Branch) Meter
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

Multi-Circuit (Branch) Meter

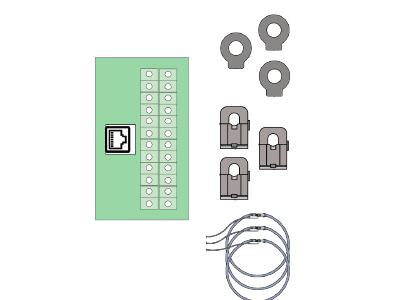

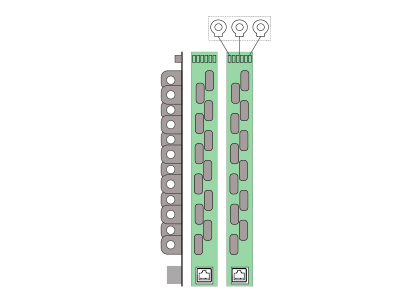

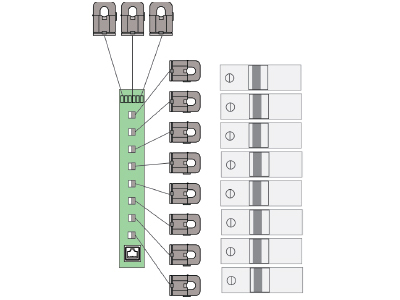

True 0.5% accuracy suitable for billing applications Options for solid core, split core CTs, Rogowski coils1 & analog, discrete & pulse inputs On board webserver and data logging Solid Core Strip for new insallations on panelboard branch circuit monitoring Split Core Strip for retrofit on panelboard branch circuit monitoring Multi-circuit module accepts 24 CTs (96 total)

Monitors up to 96 circuits
On board webserver and data logging
Customizable alarming features
  • Optimized for new and retrofit installations with no disruption to critical loads
  • Monitors up to 96 circuits
  • Options for solid core, split core CTs, Rogowski coils1 and analog, discrete and pulse inputs.
  • On-board web server provides immediate access to real-time and logged data
  • Integrated data logging supports up to 64 GB stor- age; remotely accessible or manually exportable
  • Customizable alarming features

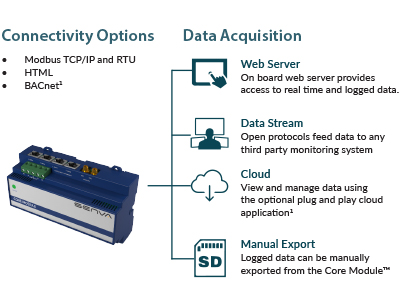

  • Select from multiple connectivity options including Modbus TCP/IP, RTU
  • Open protocols allows connection with any third party monitoring system
  • True 0.5% accuracy suitable for billing applications
  • Presence of Voltage detection accurately indicates breaker status even under no load conditions
  • True-Circuit Display mapping function presents data according to actual circuit configurations
  • Detailed power and energy monitoring per circuit including Waveform capture and THD

Description

Senva is redefining Branch Circuit Monitoring with a next generation technology that simplifies installation and connectivity while providing instant access to data in a user friendly format. The versatile Core Module TM system is a single monitoring solution with peripherals optimized for Branch Circuit and Multi-Circuit Monitoring applications designed to reduce the cost and complexity associated with legacy multi-circuit monitors.

Applications

  • Ideal for baseline consumption in premises (e.g. store to store comparisions for chains)
  • Activity-based costing in commercial and industrial facilities
  • More informative than an amperage measurement only.
Product Price Quantity

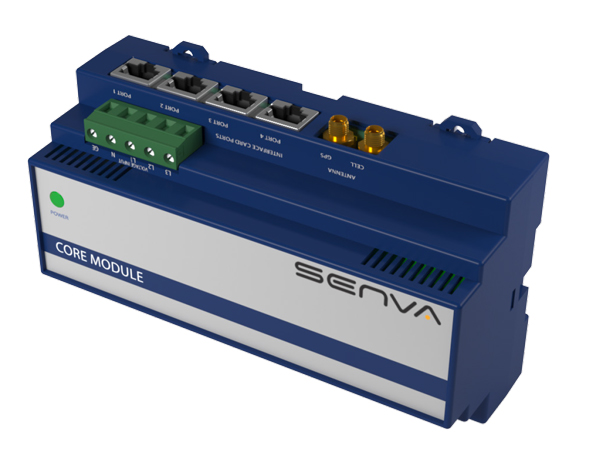

CM02SV Enhanced Core Module 90-300 VAC L-N, 50/60 Hz
$3,465.00 /

EA

CM02SV-480 Enhanced Core Module 160-480 VAC L-L / 0.1A, 50
$3,465.00 /

EA

CM02SV-DC Enhanced Core Module 12-24VDC
$3,465.00 /

EA

CT02101A Standard 0.75" CT center 1 x 21 100A solid core CT
$382.80 /

EA

CT02101B Enhanced 0.75" CT center 1 x 21 100A solid core CT
$431.20 /

EA

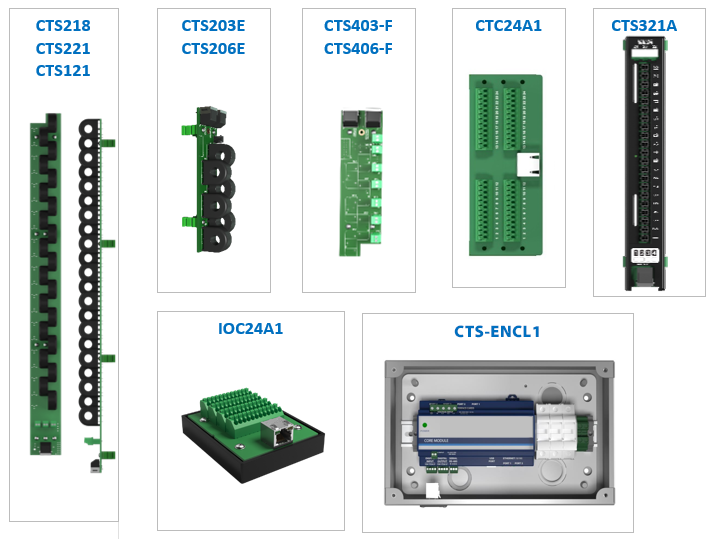

CTC24A1 24 channel Multi-Circuit Monitoring CT interface board
$301.40 /

EA

CTS-ENCL1 NEMA 1 Core Module Enclosure
$431.20 /

EA

CTS121A Standard 1.0" CT center 1 x 21 100A solid core CT
$391.60 /

EA

CTS121B Enhanced 1.0" CT center 1 x 21 100A solid core CT
$455.40 /

EA

CTS218A Standard 18mm CT center 1 x 18 100A solid core CT
$367.40 /

EA

All prices shown are excluding tax unless otherwise specified.
