EMX
True RMS Advanced Energy Meter
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

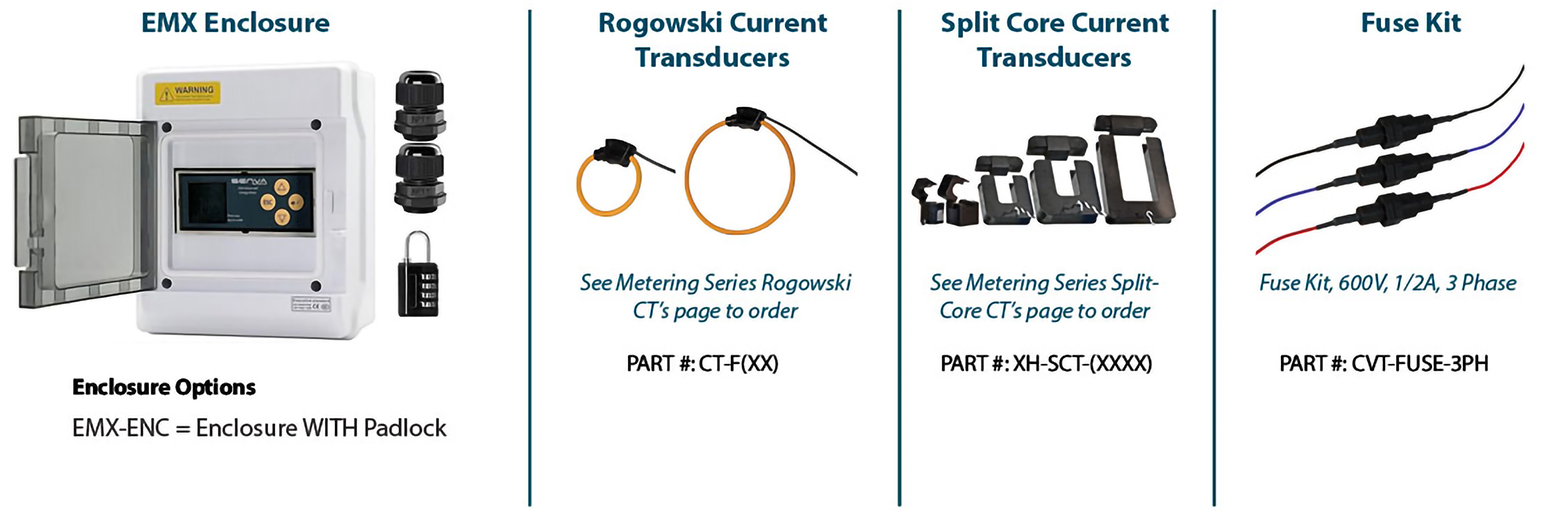

Complete family with the EMX Lite, EMX and EMX-IP All models are compatible with DIN rail mounting and the SenvaSync App EMX Lite (coming soon) and EMX-IP just released! OLED (EMX and EMX-IP) screen for easy configuration Optional NEMA 4X Enclosure with padlock Works with any 0.333V CT or di-dt Rogowski coil Self-powered with 1 to 3 phase voltage, 90-600V
Revenue-grade metering (ANSI C12.20 Class 0.2 Standards)
Monitor loads from 0.25-6000A & 90-600V

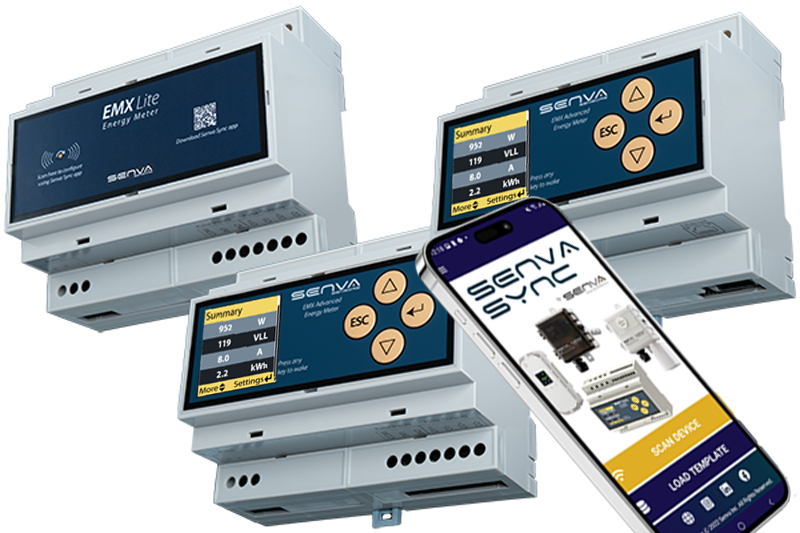

Compatible with the SenvaSync app for quick and easy installation

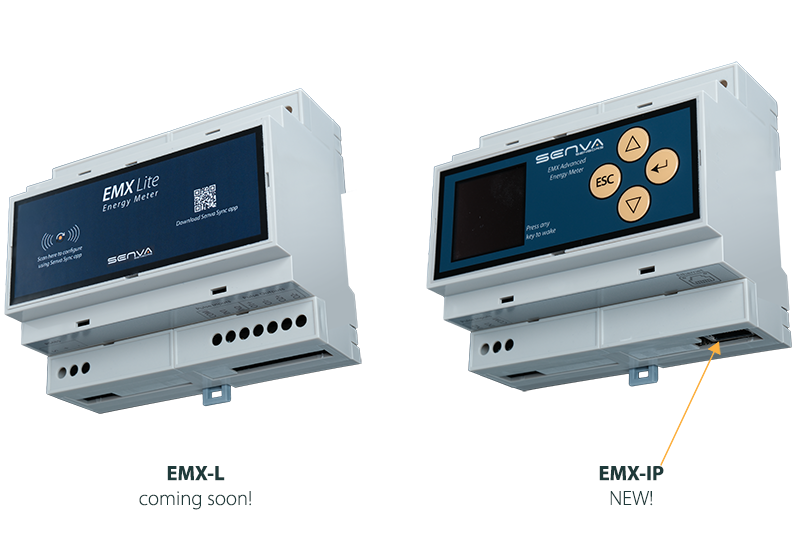

NEW! EMX-IP for BACnet IP and Modbus TCP/IP
UPCOMING! EMX-L, EMX, for a simplified metering experience

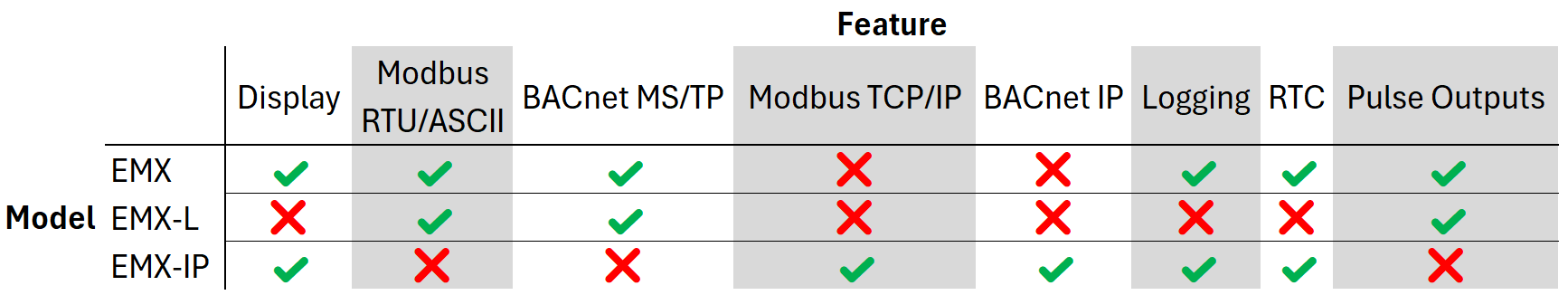

- Configuration App via NFC with SenvaSync (all models), available on iOS and Android
- Real-time logging data (EMX-L does not have logging)

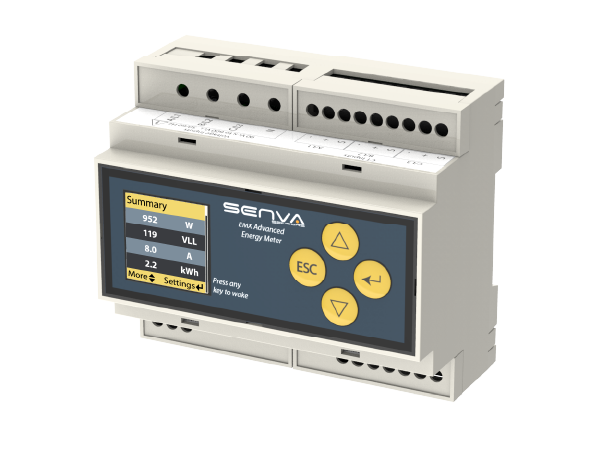

- OLED screen with user interface that streamlines the setup process
- Self-powered with 1 to 3 phase voltage, 90-600V
- Modbus and BACnet
- 2 pulse inputs and 2 pulse outputs (EMX-IP does not have pulse outputs)
- Provides accurate RMS (Root Mean Square) metering of distorted loads
- One universal meter supports all metering CT options in the product family

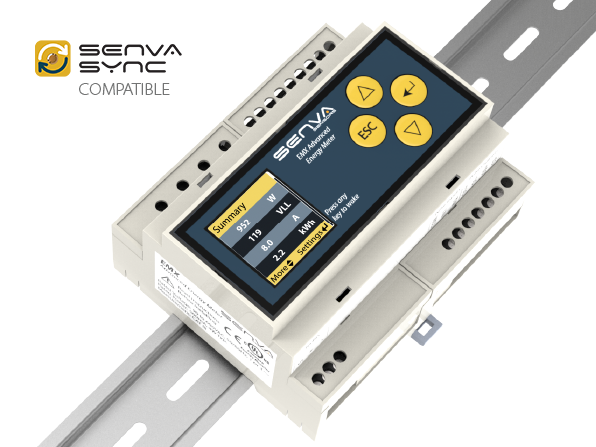

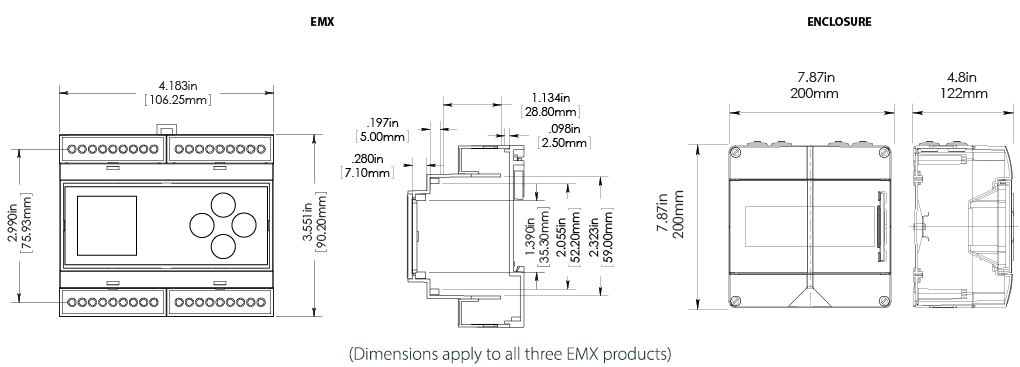

- Supports mounting on PR30 (TS 35/F6) DIN rail
- Modus TCP/IP and BACnet IP!
- Same features as EMX except for RS-485 and pulse outputs
- A simplified EMX, same terminals and most of the features. Removes display, logging, and RTC.
Description
The EMX, Advanced Energy Meter, is the most user-friendly and quick installation True RMS energy meter on the market. With the SenvaSync app, setup is easier than ever and thanks to NFC - even with the device powered off. EMX is line-powered, so no additional power supply is needed. Equipped with your choice of RS-485 or IP, the EMX can connect to nearly any network. Pulse inputs allow the EMX Advanced to relay additional meters to its connected network. Ideal for retrofits, the EMX accepts any 0.333V CT or standard metering Rogowski coil with no need for time-consuming and bulky integrators. As the EMX is a True RMS meter, it can handle heavily distorted loads (harmonics) without losing any accuracy. The EMX truly is a perfect fit for any energy metering needs.
Applications
- Energy Management and Performance Contracting
- Monitoring for commercial tenants
- Activity-based costing in commercial and
industrial facilities - Real-time power monitoring
- Load shedding
- Audits/temporary monitoring
- Distributed generation
- Great for data center energy meter sensing
