Branch Series

Multi-Circuit (Branch) Meter
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

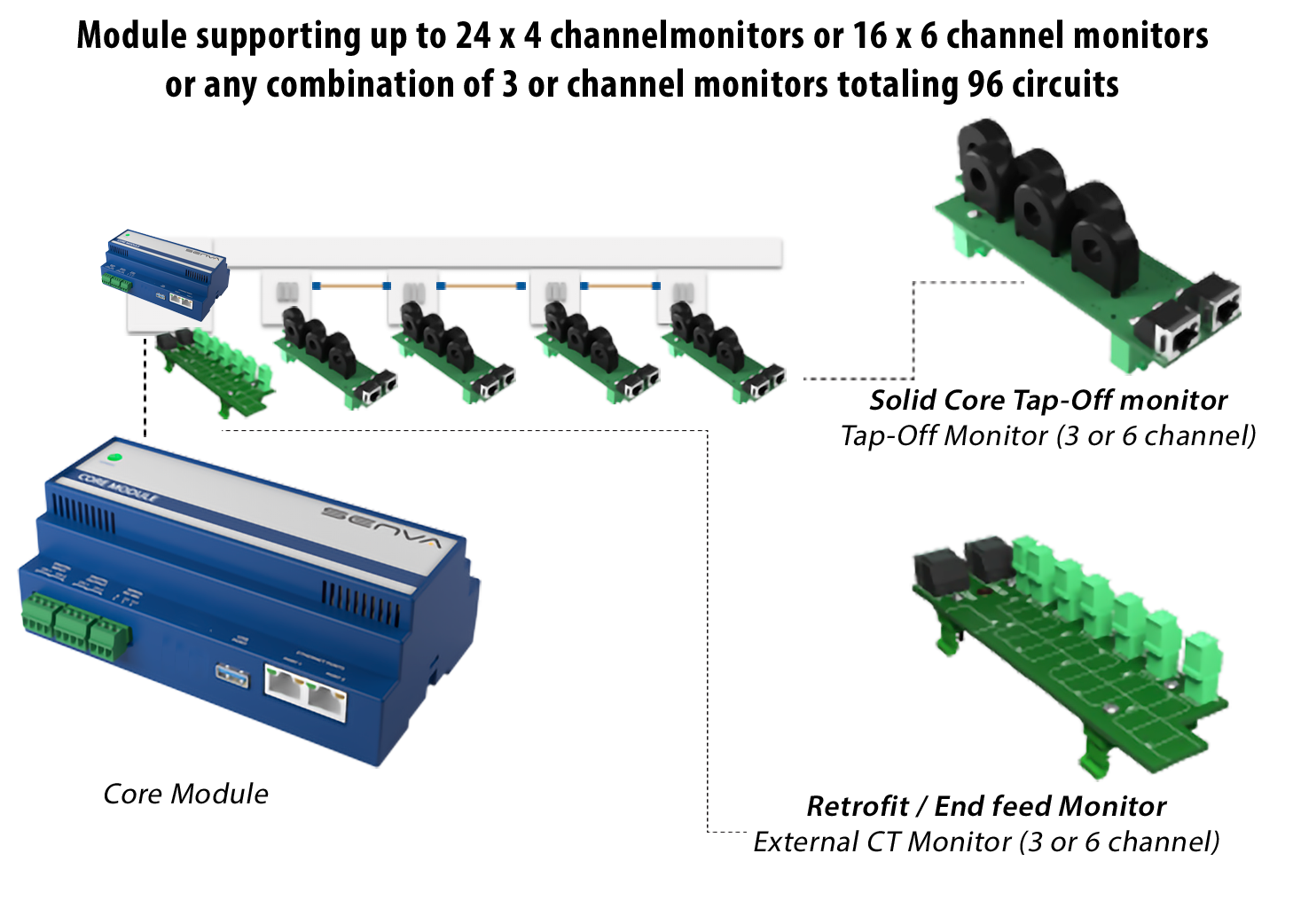

Monitors up to 96 circuits
On board webserver and data logging
Customizable alarming features

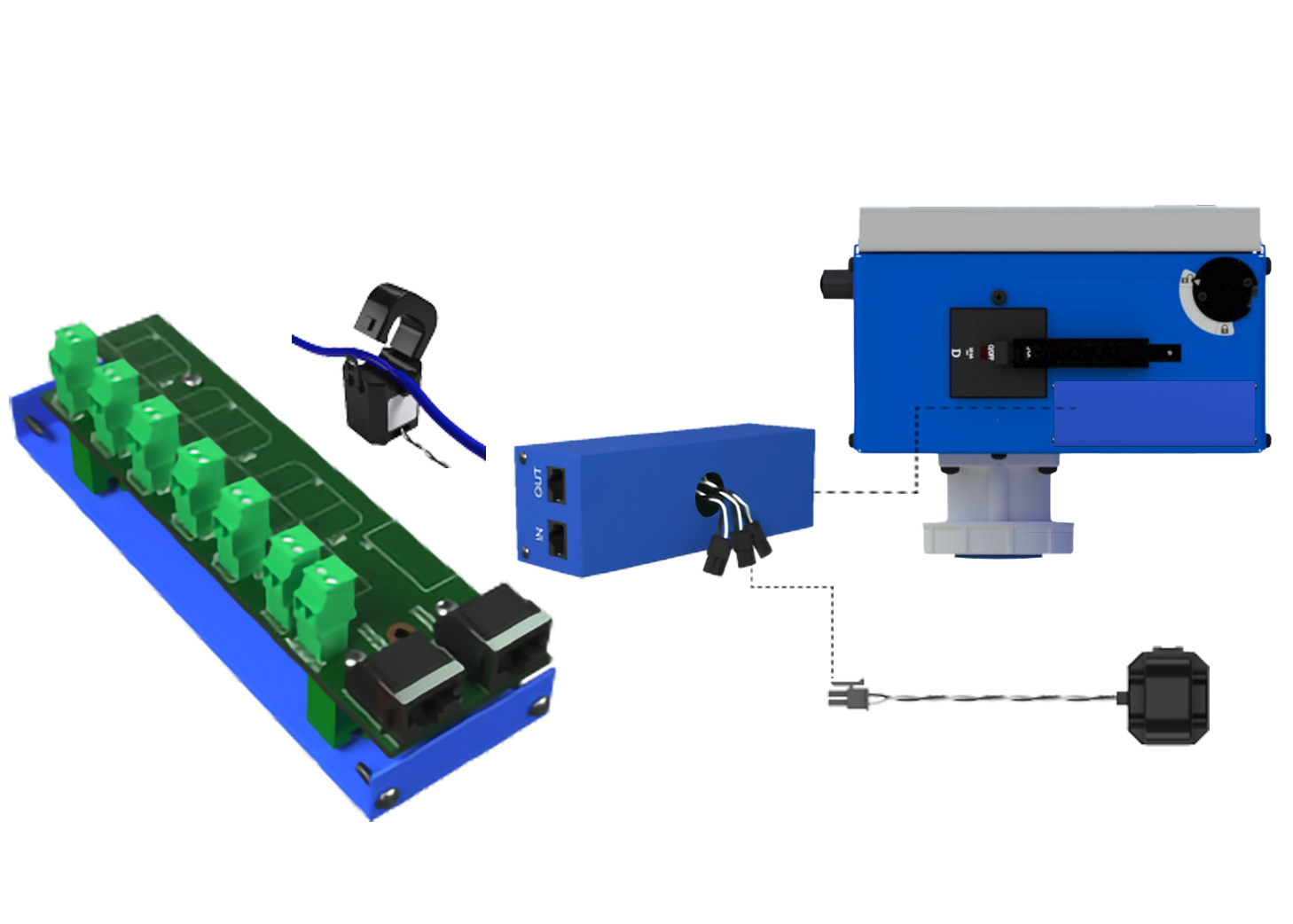

  • Optimized for new and retrofit installations with no disruption to critical loads
  • Monitors up to 96 circuits
  • Options for solid core, split core CTs, Rogowski coils1 and analog, discrete and pulse inputs.
  • On-board web server provides immediate access to real-time and logged data
  • Integrated data logging supports up to 64 GB stor- age; remotely accessible or manually exportable
  • Customizable alarming features

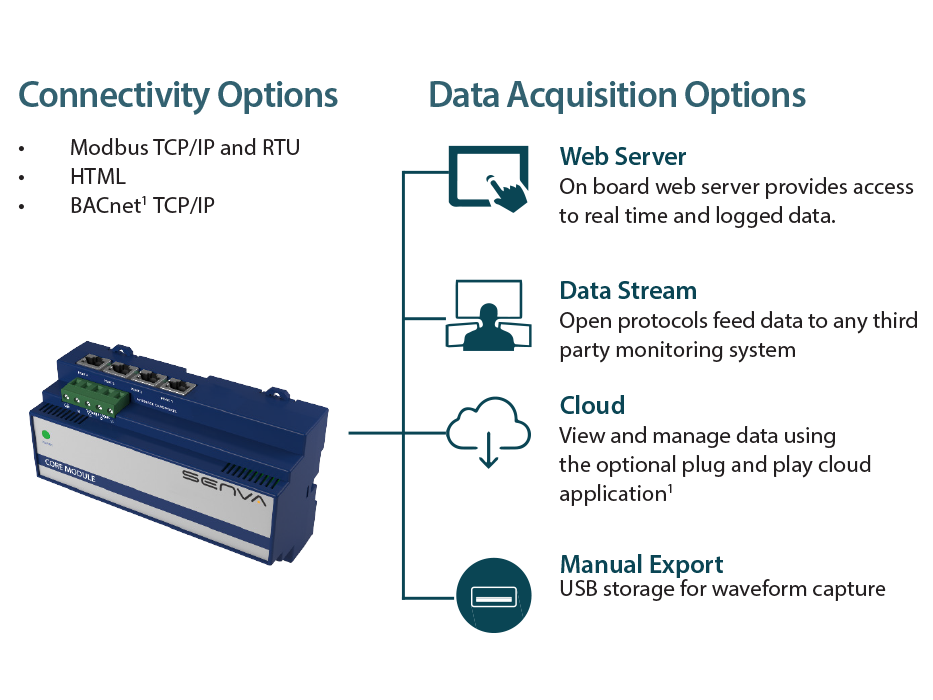

  • Select from multiple connectivity options including Modbus TCP/IP, RTU
  • Open protocols allows connection with any third party monitoring system
  • True 0.5% accuracy suitable for billing applications
  • Presence of Voltage detection accurately indicates breaker status even under no load conditions

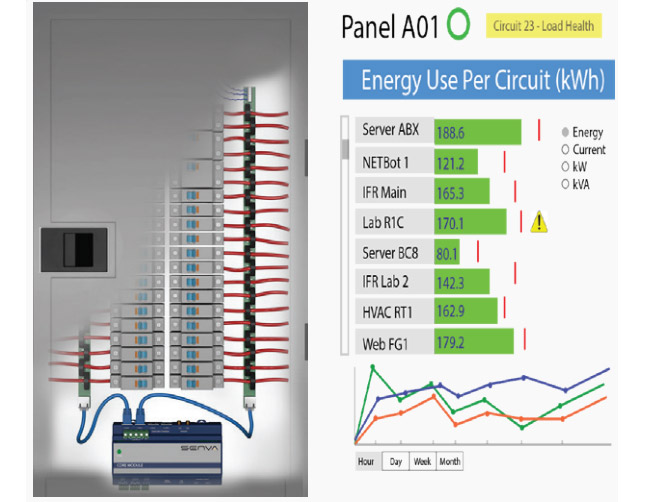

  • True-Circuit Display mapping function presents data according to actual circuit configurations
  • Detailed power and energy monitoring per circuit including Waveform capture and THD

Description

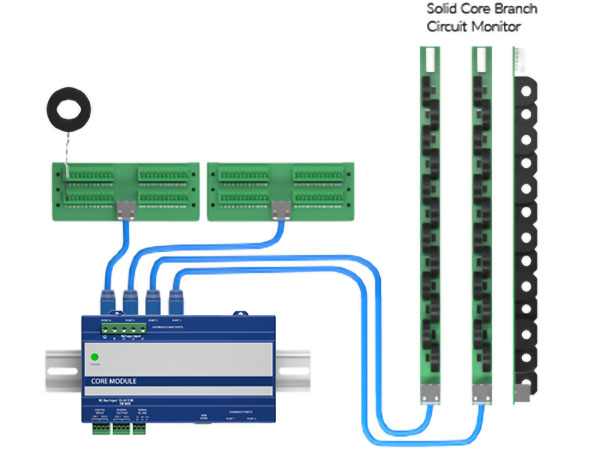

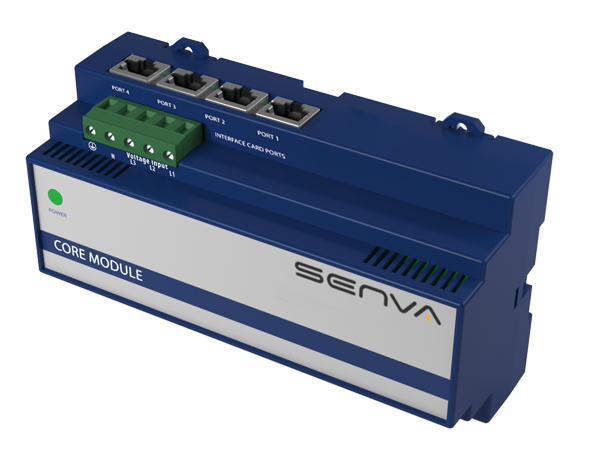

Senva is redefining Branch Circuit Monitoring with a next generation technology that simplifies installation and connectivity while providing instant access to data in a user friendly format. The versatile Core Module TM system is a single monitoring solution with peripherals optimized for Branch Circuit and Multi-Circuit Monitoring applications designed to reduce the cost and complexity associated with legacy multi-circuit monitors.

Applications

  • Ideal for baseline consumption in premises (e.g. store to store comparisions for chains)
  • Activity-based costing in commercial and industrial facilities
  • More informative than an amperage measurement only.

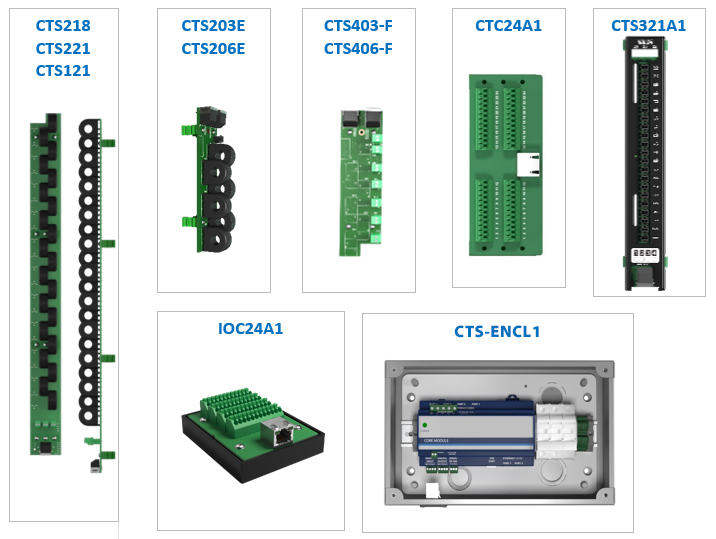

Product Price Quantity
CTS218A Standard 18mm CT center1 x 18 100A solid core CT
$1,102.20 /

EA

CTS218B Enhanced 18mm CT center1 x 18 100A solid core CT
$1,247.40 /

EA

CTS221A Standard 18mm CT center1 x 21 100A solid core CT
$1,148.40 /

EA

CTS221B Enhanced 18mm CT center1 x 21 100A solid core CT
$1,293.60 /

EA

CTS223B Enhanced 18mm CT center1 x 23 100A solid core CT
$1,293.60 /

EA

CTS321A 24 channel Floating Stripsplit core CT interface board
$937.20 /

EA

CTSC010100 100A Split Core CTlead with Molex connector
$75.90 /

EA

CTSC01050 50A Split Core CTlead with Molex connector
$42.57 /

EA

CTSC01075 75A Split Core CTlead with Molex connector
$47.52 /

EA

EMMC-N4 N4 Encl for Core Modulepre-drilled mount/conduit
$445.20 /

EA

All prices shown are excluding tax unless otherwise specified.
