PG Series

Gauge Pressure Sensor
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

PG Gauge Pressure

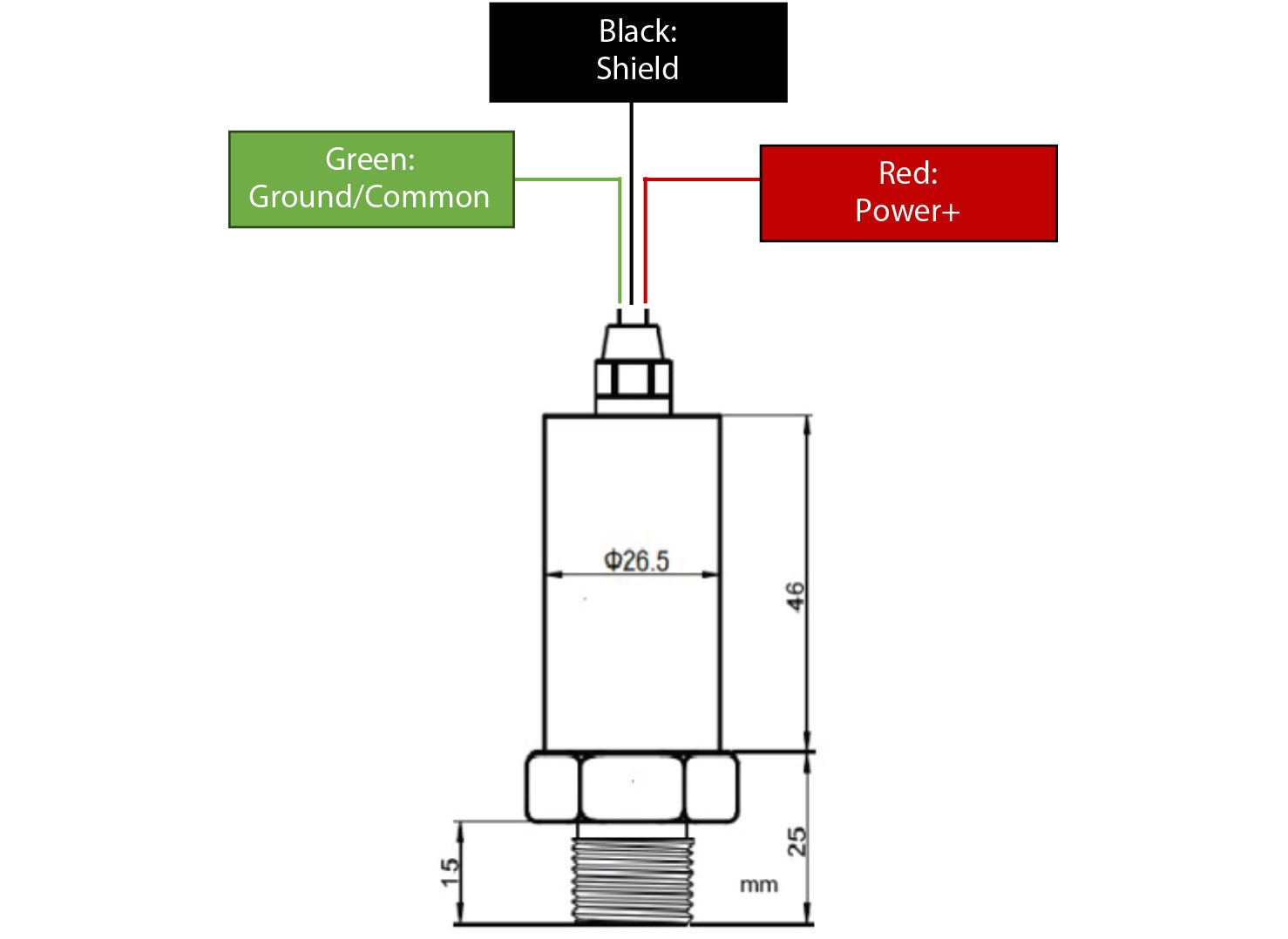

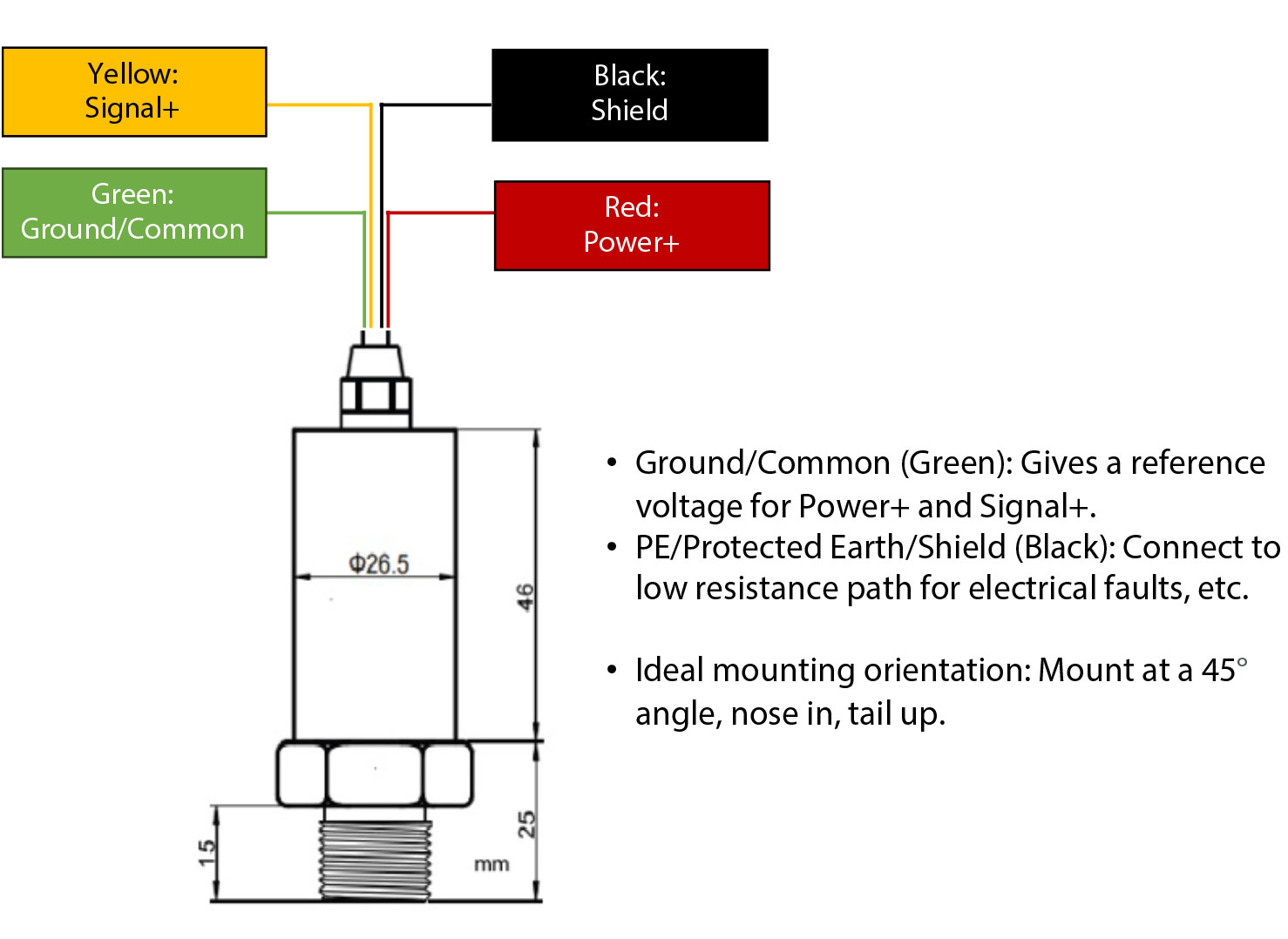

PG Series is a rugged and accurate gauge pressure sensor PG Voltage Output (0-5V) PG Current Output (4-20mA)

Stainless Steel Wet Media
1/4” MNPT
0-5VDC or 4-20mA outputs

  • Compact, Robust Package
  • 48” wire leads; 1/4” - MNPT
  • Chemical Compatibilities: Any gas or liquid compatible with 17-4 stainless steel.
  • Burst pressure 5X full scale
  • Reverse voltage protected
  • Rugged stainless steel construction
  • No oil, welds or internal o-rings
  • 0.25% BFSL @ room temperature (Accuracy includes non-linearity, hysteresis & non-repeatability)


This PG Series is a rugged and accurate gauge pressure sensor. It is compatible with a wide variety of liquids and gases. The MEMS technology gives the PG series flexibility to be used in virtually any OEM application. Whether measuring hydraulic pressure in a manifold or corrosive liquids and gases such as sea water or hydrogen, the PG series industrial pressure sensor provides a thick diaphragm to maintain long-term stability.


  • Refrigeration Pump Controls
  • Chillers
  • Freon and Ammonia Cooling Systems
  • CO2 Systems
  • Building Controls
  • Water Pressure Systems
  • Boiler Controls
  • Environmental Test Chambers
  • Great for data center gauge pressure sensing

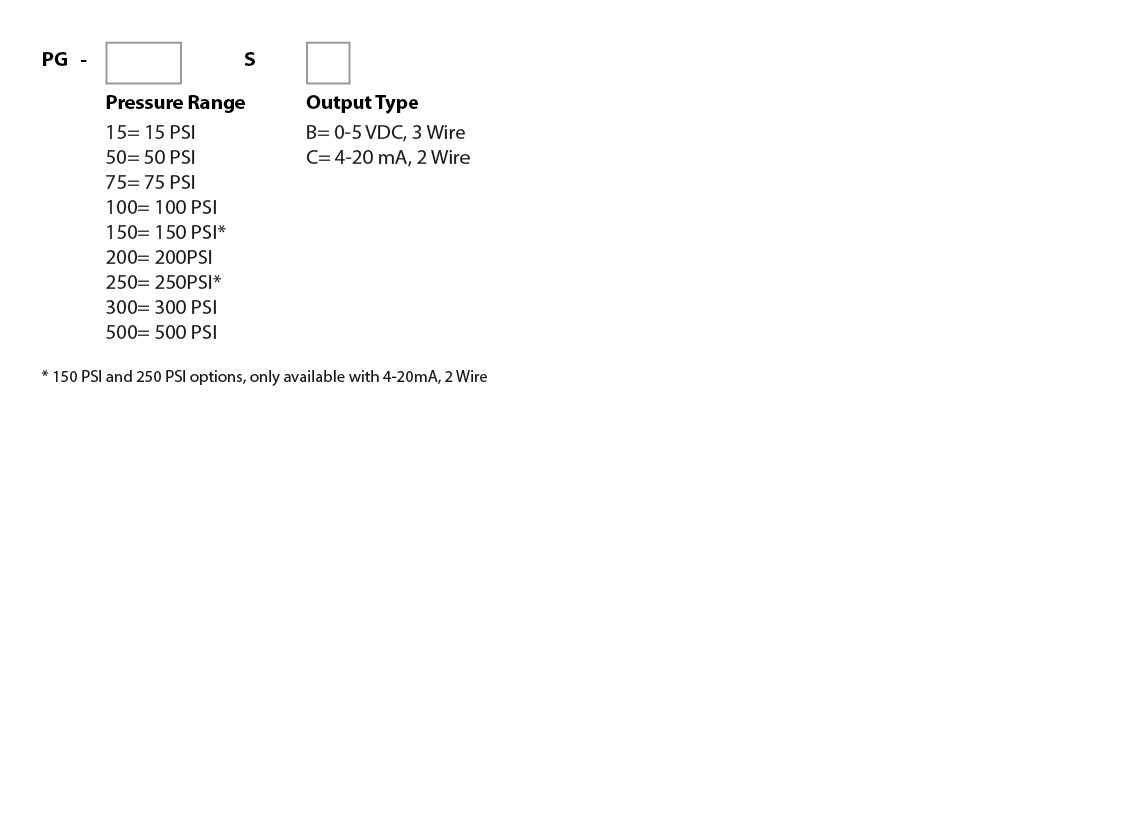

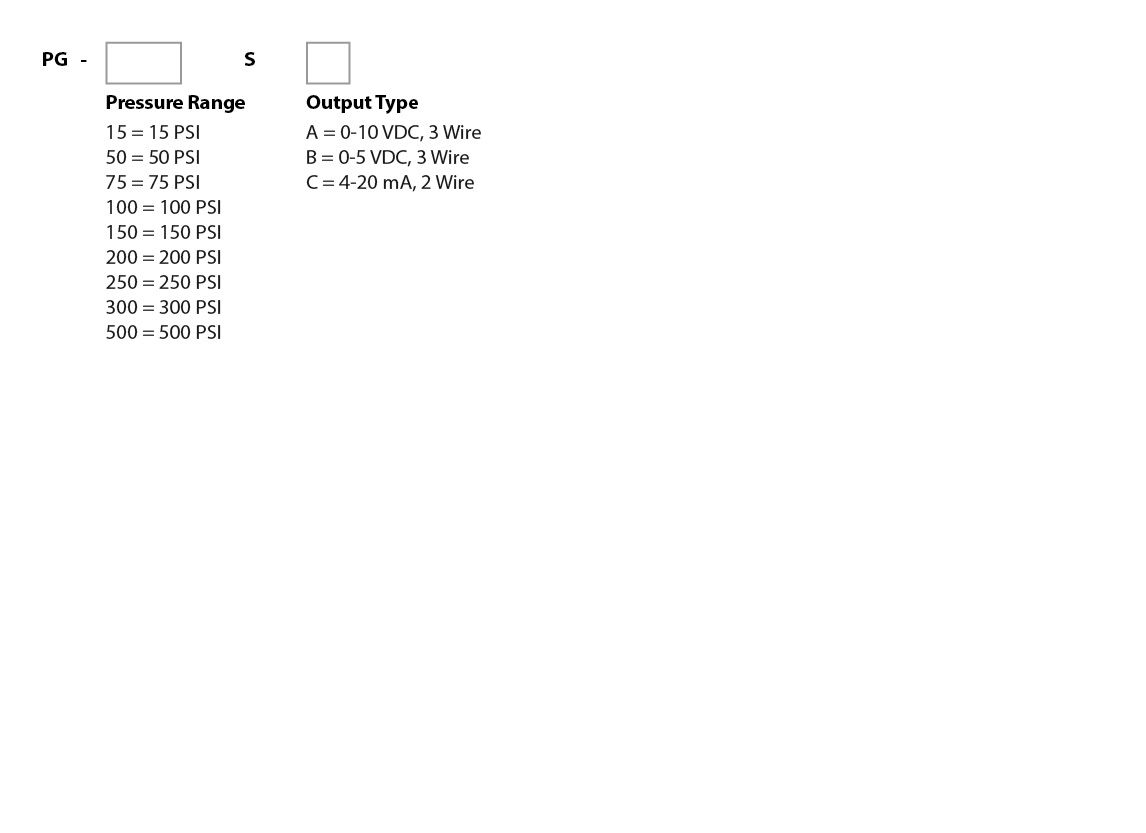

Product Price Quantity
PG-300SC Gauge pressure, 300 PSIG 4-20 mA, +/-0.25% accy
$363.00 /


PG-500SB Gauge pressure, 500 PSIG 0-5VDC, +/-0.25% accy
$363.00 /


PG-500SC Gauge pressure, 500 PSIG 4-20 mA, +/-0.25% accy
$363.00 /


PG-50SB Gauge pressure, 50 PSIG 0-5VDC, +/-0.25% accy
$363.00 /


PG-50SC Gauge pressure, 50 PSIG 4-20 mA, +/-0.25% accy
$363.00 /


PG-75SB Gauge pressure, 75 PSIG 0-5VDC, +/-0.25% accy
$363.00 /


PG-75SC Gauge pressure, 75 PSIG 4-20 mA, +/-0.25% accy
$363.00 /


All prices shown are excluding tax unless otherwise specified.
