HT0D Series

Humidity/Temp Duct Value
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

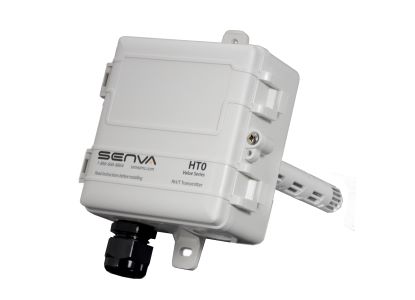

HT0D RH/T Duct Value

Rugged, sealed enclosure Cost-effective...ask about quantity pricing Probe provides active airflow readings Buy American Act Certified

  • 2% and 3% RH accuracy options
  • 0-5V, 0-10V, 2-wire and 3-wire 4-20mA options
  • Thermistor outputs for temperature optional
  • On-board temperature compensation for RH.
  • Gasket seals sensor against wall drafts and false readings
  • Vortex probe circulates flow for accuracy
  • Cost-effective solution for duct applications

Description

Designed for use with energy management systems in buildings, the HT0D series combines excellent stability and reliable operation. Analog output options and thermistor options accommodate any installation.

Applications

  • HVAC room humidity and temperature measurement and control
  • Energy management/building control
Product Price Quantity
HT0D-3BD DUCT RH 3% 3W 0-10V 1000PT RTD
$271.86 /

EA
HT0D-3BE DUCT RH 3% 3W 0-10V 10KT2
$271.86 /

EA
HT0D-3BF DUCT RH 3% 3W 0-10V 10KT3
$271.86 /

EA
HT0D-3BK DUCT RH 3% 3W 0-10V 20K
$271.86 /

EA
HT0D-3CA DUCT RH 3% 2W 4-20mA No Temp
$255.48 /

EA
HT0D-3CA DUCT RH 3% 2W 4-20mA No Temp
$255.48 /

EA
HT0D-3CC DUCT RH 3% 2W 4-20mA 100PT RTD
$271.86 /

EA
HT0D-3CD DUCT RH 3% 2W 4-20mA 1000PTRTD
$271.86 /

EA
HT0D-3CE DUCT RH 3% 2W 4-20mA 10KT2
$271.86 /

EA
HT0D-3CK DUCT RH 3% 2W 4-20mA 20K
$271.86 /

EA

All prices shown are excluding tax unless otherwise specified.
